Bachelor Thesis
Construction of a software solution for detection of end-of-support dependencies
Author
Antonino Grasso
Supervisor
Prof. Dr. Johannes Ebke
Munich, March 2 2023
Hochschule München University of Applied Sciences
Department of computer science and mathematics
Device Insight GmbH
End-of-support dependencies within software development facilitate risk and expense for development teams and project management. Within open source developed software, end-of-support and its informational use is a less established concept. This work elaborates and proposes a theoretical concept of seven EOS Factors as core characteristics of end-of-support dependencies within the EOS Abstraction Framework and implements a software solution – deprec – based on it, capable of detecting end-of-support dependencies independent of projects, ecosystems, and information sources. Leveraging information found in adjacent literature to the end-of-support topic, the theoretical concept represents a framework of abstracted information fostering abstracted and constant methodology in a comprehensible and approachable way. Before implementation, a requirements analysis was performed and a technical concept designed according to elaborated requirements. Evaluation of the implementation demonstrated that classifying dependencies as end-of-support by combination of EOS Factors is a promising approach bearing acceptable accuracy, although the evaluation set is not representative and the implementation focused on feasibility and practicability. Concluding that deprec has its use in practice, the software development landscape can benefit from using deprec to gain insights into the end-of-support status of dependencies and leveraging its informational use to reduce risk and expense in further development.
Open-source software plays a major part in software development. An open-source security and risk analysis report shared by Synopsys’ Cybersecurity Research Center1 for 2022, resulted in 97 percent of 2,049 analyzed codebases across 17 industries depending on open source, with 78 percent of code being open source (Synopsys 2022). The same report states: “open source is the foundation for every application we rely on today”, with the tendencies of using open source steadily rising (Synopsys 2022). Clearly, as why should one spend resources developing already existing software, i.e., reinventing the wheel, if someone else went through it already. However, using open-source software written by others within one’s project, without thinking about consequences and implications regarding security and stability, is not recommended either. Open source must be carefully selected for one’s project and carefully maintained within the same without jeopardizing future development (Larios-Vargas et al. 2020, 1). Other than commercial software where responsibility of reliability is offloaded to the respective company, open-source software requires different techniques to manage ((Synopsys 2022, 20); (J. Wang 2012, 369)) and must be maintained in projects by development teams themselves: awareness of component’s security and stability status, applying patches and bug fixes, updating to newer versions, or replacing them altogether. To be noted though, as the Synopsys Analysis Report (2022, 11) put it: “open source itself does not create risk, but its mismanagement does”.
Open-source software used in projects, hereinafter referred to generally as dependencies, become a problem that has to be taken care of if they are to lose support and no longer being maintained, not receiving bug fixes, updates, and patches. The Synopsys Analysis Report (2022, 19) states that 88 percent of examined codebases contained open-source software with no feature upgrades, no code improvements, and no security issues fixed in the past two years. They further conclude that said open-source software more likely was no longer maintained and thus falling into the aforementioned problematic category, hereinafter referred to as end-of-support dependencies. Research done in the literature on open-source software supports this view: open-source software projects, though, can be long-lived, are eventually abandoned ((Khondhu, Capiluppi, and Stol 2013); (Capiluppi, Lago, and Morisio 2003, 9, 10); (Coelho and Valente 2017)). Elaborating further, projects where end-of-support dependencies are detected, as the latter fall out of date without updates and maintenance, the former face compatibility and stability issues with either other of their dependencies, their codebase, or both. Furthermore, Common Vulnerabilities and Exposures (CVEs) emerging for any of those dependencies will remain vulnerable to abuse without security updates, further risking security-related issues. Which in turn would jeopardize project stability or foster to compliance issues.
From the perspective of dependency management, end-of-support dependencies pose the general risk of demanding immediate attention to at the very least decide how to proceed further and, in the worst case, to be replaced immediately. If happening at a particular bad timing, throwing the planning of the project overboard. The longer end-of-support dependencies stay unrecognized, the higher the risk and expense of dealing with consequential problems; the sooner they are recognized, the better are risk and expense integrable in planning, resulting in better managing possibilities.
Up to now, dependencies without support are discovered to a large extent only if they are checked manually or causing problems. Without occasion, however, dependencies loosing support usually remain undiscovered (Bogart, Kästner, and Herbsleb 2015, 3). Although there exist solutions to automate updating dependencies or for security assessment of dependencies, there is no prophylactic approach to specifically reduce risk and expense dealing with dependencies loosing support ((Xu et al. 2020, 780); (Y. Wang et al. 2020, 1)). Within software development, there were no existent entities found, maintaining a database providing reference for development teams and providing insights about dependencies and their end-of-support status. Since the definition of end-of-support and when a dependency should be considered as such varies depending on the project context, and no common approach has been found on how dependencies should be considered as end-of-support, there is a lack of reliable and context-independent automated dependency analysis in the software development landscape that focuses on the reliability of dependencies in terms of end-of-support ((Xu et al. 2020, 780); (Y. Wang et al. 2020, 1, 4)).
As the approach of automated end-of-support dependency detection is to some degree novel in the software development landscape, it is necessary to build a theoretical conception of classifying dependencies as end-of-support to function as core functionality of the software solution. Following a solid theoretical concept, to design and implement a software solution within the scope of this work, a requirements analysis is necessary.
With a theoretical basis of the core functionality and set requirements, a software solution is conceptualized that can automatically detect end-of-support dependencies, hereinafter referred to as under the title deprec. Considering the concept and respecting requirements, deprec is implemented, presented and further discussed its technical possibilities and limitations as well as evaluated regarding its usability.
This chapter addresses the field of open-source software, open-source dependencies, dependency management and development insights, extracting knowledge in regard to helping to define the domain of end-of-support dependencies. Further, making use to set the playing field for further proceedings by defining the classification by which dependencies are classified and the approach to classifying them.
To set the ground for a theoretical basis of classifying dependencies as end-of-support, it was important to validate that the approach of end-of-support dependency detection is novel and to justify why it was necessary to elaborate a theoretical basis for it.
Taking a step back, before looking at the status quo in terms of end-of-support, existing solutions with the broad task of analyzing dependencies can be evaluated whether they cover the informational use of end-of-support dependencies.
Tools evaluated were software composition analysis platforms such as (a) OWASP’s DependencyTrack2 or (b) Synopsys’ Black Duck SCA3 and (c) open source RenovateBot4 capable of universal automated dependency updates.
Considering DependencyTrack and Black Duck SCA, both tools rather focus on identification and managing of security or quality risks such as licensing and vulnerabilities, and components being out-of-date or modified. Though dependencies may be identified as out-of-date, the domain of end-of-support is far greater than the issue of whether a dependency has a newer version. In a project that has existed for more than 15 years, most dependencies can be considered as out-dated. Nevertheless, this circumstance is no guarantee that dependencies or technologies can no longer be used and are no longer supported. Though updating dependencies in and of itself can be seen as prophylaxis to avoid risks with out-dated dependencies, it is not sufficient for the end-of-support domain. With which, on this note, rendering RenovateBot neither fitting for the end-of-support domain and its informational use.
In summary, there is a lack of tools that provide information about the status of dependencies, and more specifically, whether they can continue to be used going forward apart from vulnerabilities or outdatedness.
End-of-support as a concept is no new creation. It is well-defined, established, and applied in commercialized software like the adobe suite5 or big names in open-source software6 which have a certain position apart from what is focused on in this work. They rather fall into the category of software that is used as tooling or standalone rather than as dependency.
Organizations, capable of controlling what happens with their commercialized software and when it does in a centralized way, clearly communicate if and when their software has reached its end-of-support. They do so because the end-of-support status of standalone software has its informational use established. Considering that updating standalone software is less complicated and error-prone than updating dependencies interconnected within a project, its users are enabled to continue using their software and updating it, without the uncertainty of issues being fixed, problems being dealt with and support being provided.
With open-source dependencies, though, the modus operandi is vastly different. Due to development teams managing the handling of their dependencies themselves, they do not tend to dedicate much time to assessing dependencies if they are of no concern, let alone if they are about to lose support. Development teams rather focus their limited time on more prevalent issues such as performance and operations ((Y. Wang et al. 2020); (Bogart, Kästner, and Herbsleb 2015); (Pashchenko, Vu, and Massacci 2020)). Following that, dependency management for the most part consists of problem-solving rather than problem prevention, though to some degree updating dependency versions can be considered as such. Nonetheless, due to the shifted focus on problem-solving, established approaches in dependency management are issue-focused. This fact leads on to why tools, though existing and enabling development teams to advance their dependency management, none of them cover the informational use of end-of-support status of dependencies.
Concluding that end-of-support and its informational use for open-source dependencies is not well established, and its application fragmented at best, it has been elusive to serve as is in defining a theoretical basis for classifying dependencies as end-of-support.
A direct consequence of the non-well-establishment of informational use of end-of-support status of dependencies is the even less-established practice of assessing dependencies as such and, therefore, approaches to do so become inconclusive. Leading with the fact that literature covering this topic is limited to non-existent (Valiev, Vasilescu, and Herbsleb 2018, 645), developers are set off on their own. Excluding dependencies where effort is explicitly made to communicate them as end-of-support7, developers interested in the informational use of end-of-support status of their dependencies, have no choice than to assess themselves whether they think a particular dependency is supported or not. By which characteristics and methods developers would do that in detail can only be assumed, but vary from developer to developer (Larios-Vargas et al. 2020).
It can be concluded: subjectivity enters into the assessment. Where this is the case, the latter varies depending on the developer’s experience, and the outcome of the assessment takes on a fluid character.
Looking into detail of dependencies where their developers clearly communicated them as end-of-support, factors that would precede onto that can be extracted. Such factor would be the release cycle that would have been suspended. For example, log4j8 has been abandoned since 2012 (i.e., no releases since 2012) in favor of its successor. Though had its official end-of-support announcement9 not until 2015, leaving a gap of three years without a release before the official announcement.
Following that example, one could extrapolate the fact that a suspended release cycle results in the fact that the dependency has lost support. This, however, turns out to be not the case for the subset of feature-complete dependencies. A survey conducted by Coelho and Valente (2017) had their interviewees answering, as to why their project had no activity in the last year, that their projects were considered by them as done. Valiev, Vasilescu, and Herbsleb (2018, 647) describes them appropriately: “[feature-complete libraries] continue to deliver their intended use without active maintenance” – though to be noted, differentiating between ’active’ and ’passive’ maintenance varies between projects and cannot be generalized. In addition, the sturdier a base the dependency is built upon, the less maintenance does a dependency need (Coelho and Valente 2017, 9).
Dependencies requiring no maintenance and no features to be added would warrant a suspended release cycle, but not necessarily to be considered as end-of-support. The ’owasp-java-encoder’ project10 gives an example of this indication. Its last release was in 2020 (two years ago as of this work) but is passively maintained by its developers. Concluded by following key points: low-maintenance and niche project, maintenance commits since last release, non-lingering issues and organization-backed.
A suspended release cycle leads onto possible misinterpretation of feature-complete dependencies as end-of-support. Considering sufficient project activity supports in differentiating, though varies between projects. In addition, project activity in and of itself can be concluded as sufficient, depending on more detailed factors: commit activity indicating maintenance, though again, maintenance could consist of updating dependency versions or minor adjustments to the project; handling user-related issues contraindicating abandonment; and so on.
The point is that dependencies cannot be assessed as end-of-support as is, without doing so in a non-comprehensible and non-constant way. There are many ambiguous characteristics that speak for and against, influencing each other and functioning differently depending on the project and its context. In addition, different developers can share different views and can make different claims based on differing perspectives (Valiev, Vasilescu, and Herbsleb 2018, 645). All in all, the assessment of whether a dependency is end-of-support is not a trivial matter.
In summary, any software developed based on elusive-established concepts and based on inconclusive approaches, that attempts to find a way through dense and entangled information will not stand up to the demands of practice. What is necessary, is a basis that allows for an abstracted and constant methodology to classify dependencies as end-of-support in an approachable and comprehensive way. The theoretical concept proposed hereinafter introduces a holistic approach to classifying dependencies as end-of-support with abstracted concepts based on previously conducted research and evaluations in thematically adjacent literature as well as established concepts therein.
Decentralized and collaborative development is common for open-source software. Oftentimes under the wings of an organization, but not less often developed by independent developers. End-of-support takes the place in that this decentralized and collaborative association of developers no longer invests resources in the development and maintenance of such a dependency. Especially issues, CVEs and bugs are not handled nor fixed.
End-of-support though is not a symptom of decommissioning open-source software, rather the result of it. In the process of decommissioning open-source software, similar predicates can be used to describe different characteristics of an open-source software project soon to be decommissioned. Figure 2.1 depicts the differentiation of end-of-support from other similar predicates:

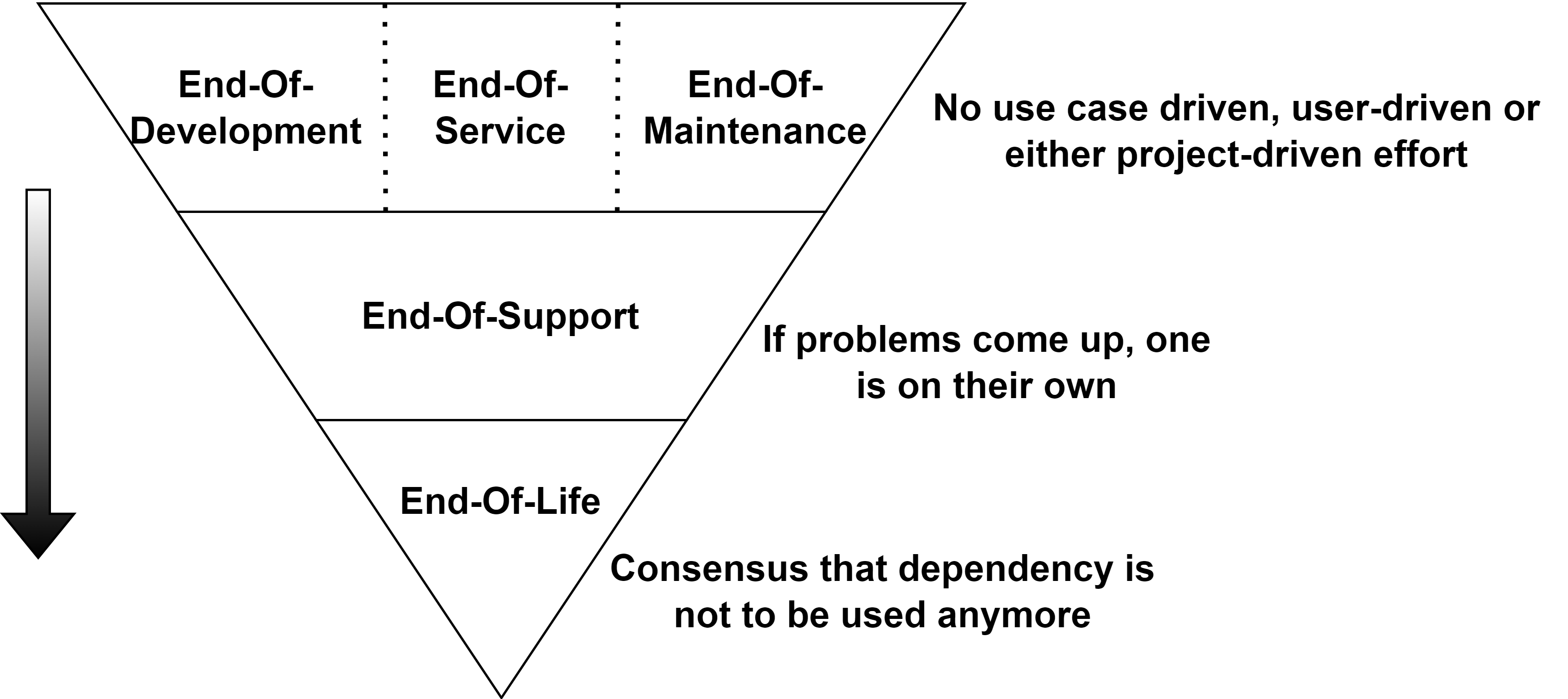

These terms define that either, in sequence from left to right, use case driven, user-driven or project-driven effort is no longer present in an open-source software project.
Under use case-driven effort falls regular development to advance a dependency in its use case: e.g., adding features, enhancing performance, providing utility. User-driven effort is everything triggered by the dependencies users: e.g., implementing requested features or providing support for users’ issues. Tasks that are necessary for a dependencies’ continuation are associated with project-driven effort: e.g., fixing issues or CVEs, or regular maintenance like updating dependency versions and keeping the project itself tidy and up-to-date.
End-of-service, end-of-development and end-of-maintenance precede the predicate of end-of-support, whereas the former to a degree is a sufficient, and the latter two are a necessary condition. They are not to be seen as strict requirements though, that if one or a combination is satisfied, a dependency wanders on to the domain of end-of-support. The aforementioned subset of feature-complete dependencies, under particularly opaque circumstances, can satisfy all of them, without necessarily satisfying end-of-support. The node module ’st’11 gives an example of this. Its repository is inactive as of May 2021 and satisfies all three predicates, but the according package on its registry12 has 350 thousand weekly downloads. One could argue that with such numerous users and such a small project, problems of any kind are rather unusual, but they would be fixed.
End-of-support is paraphrased as the following: if problems arise, one is on their own. The leading question is, when assessing dependencies about their end-of-support status, whether one can expect of problems to be taken care of. Problems of any kind, be it bugs, issues of any kind, feature requests, and especially CVEs. A dependency being end-of-support implies two scenarios for development teams using said dependency: On the one hand, taking over maintenance and taking care of the dependency themselves, be it only for themselves or publicly (Larios-Vargas et al. 2020, 6, 7). On the other hand, being forced to replace the dependency altogether.
End-of-life is a rather special case, what differentiates it from end-of-support is the broad consensus about a dependencies state and its diminishing use. Its use case to labeling dependencies as such, if not officially disclosed, is rather concentrated on old dependencies, as those are less complicated to be labeled as end-of-life.
Though, for this work and its intentions, end-of-life does not bring more informational use worth pursuing than end-of-support does. From the view of dependency management, for example, the important question is whether one can continue using a specific dependency rather than being forced to update or replace altogether. To answer this question, assessing a given dependency about its end-of-support status is sufficient, voiding the need of further assessing if the given dependency also is considered as end-of-life.
With end-of-support set within the context of open-source dependencies, the next step is to elaborate the approach of classifying dependencies as end-of-support. By mimicking how developers approach dependencies about suitability, reliability and sustainability, and incorporating insights about dependencies projects, a new approach is distilled with which dependencies can be classified as end-of-support.
Primary literature on end-of-support of open-source dependencies was difficult to find, and certainly did not address approaches to classifying dependencies as end-of-support. To bypass close to non-existent literature that could have been fully relied on, it was necessary to approach the matter differently.
By reviewing literature that is thematically close, useful information was collected for the theoretical concept that would serve as the information base for classifying dependencies as end-of-support. The literature reviewed, fundamentally covered the following topics: open-source software, open-source dependencies, dependency management and development insights. With guiding questions written down in Figure 2.2, existing interviews and surveys, qualitative and quantitative research, and empirical evaluations were consulted. To be noted, ’library’ used in referenced literature is to be equated with ’dependency’.
D1. How do developers choose a library?
—
R1. What determines the survival and sustainability of libraries?
Leading question D1 was split into two parts that were of
interest for further use: Where do developers search for information and
what kind of information are they looking for? D1 was important
as assessing dependencies as end-of-support requires information
gathered from somewhere and the same used somehow, having initial
indications and directions was beneficial towards that task.
Place number one to search for information about a dependency is where
it is developed. Source code repositories are the place where developers
search first to gather information and consider whether a given
dependency fits or not. Pashchenko, Vu, and Massacci
(2020) had their interviewees answering source code repositories
as their primary information source, as the latter is not only focused
on a dependencies source code in and of itself, but also provides useful
information and metadata beyond that.
Although a dependencies’ repository is the place number one to browse through first, Pashchenko, Vu, and Massacci (2020) observed in their study that developers were less interested in low-level details of the project’s source code and rather referred to high-level information. They further state that their interviewed developers indicated to mostly rely on community support of a library. Therefore, high-level information investigated consisted of popularity measures such as the user base of the library, activity measures such as commit frequency or the number of open and resolved issues and how quickly they were fixed, and the project’s contributors.
conducted a more in-depth survey about practitioners (i.e., developers) and how they select their libraries. Evaluating their results, they grouped aspects received by practitioners into three categories of factors: technical, human and economical.
considered by practitioners in their survey were functionality, quality of the development, type of project and release process. Since the former three are less tangible for the use case of this work, only the latter was considered in more detail.
Practitioners in their survey stated that characteristics associated with a libraries release provide them indicators to predict for how long a library will be alive. Active maintenance, long-term support, maturity and steady evolution were characteristics evaluated in their survey. Larios-Vargas et al. (2020) summarizes that practitioners would assess said characteristics by a variety of measures and in non-standard ways. Active maintenance, for example, by volume of contributions, exploring how regularly libraries were updated, observing if the most recent release happened recently and assessing if contributors were actively working on new features or fixing bugs. Further, long-term support would be substituted by the libraries stability and maturity, examining the volume of bugs identified per release, one practitioner introduced the wording of ’getting enough momentum’ (Larios-Vargas et al. 2020, 5).
such as the libraries’ community and organizations partaking were considered by practitioners. End-of-support related, both the just listed were of interested as they act as central drivers behind a library: according to practitioners, communities play a positive and influential role. They include the group of users who adopted the library in their projects and the group of developers maintaining and providing technical support for the library. Practitioners considered the popularity of a library or its contributors partaking in the project, to assess its community and whether it was active or not. Popularity would be measured by practitioners, for example, by number of downloads. Contributors were paid attention to, whether they were actively engaged in the project, their responsiveness to issues or what their experience was with the library. Organizations behind a library would let practitioners perceive trustworthiness of the library, associating it with lower risk.
are considered crucial by practitioners to also be evaluated. Total
cost of ownership was proposed in their study and consisted of the
libraries license and the maintenance costs and risks associated with
using a library. Practitioners cited licensing to be a crucial factor:
“if I need to apply a security fix, it would be nice if we can change it
ourselves” (Larios-Vargas et al. 2020,
8). Licensing prohibiting change by its users coupled with
lacking sufficient release cycles would be reason for practitioners to
avoid a library.
Regarding Human Factors, Pano, Graziotin, and Abrahamsson
(2018) had their interviewees supporting the importance of the
community of a library, and also concludes “the community [being] the
heart of an open source project” (Pano, Graziotin, and Abrahamsson 2018,
20). The better responsiveness of the community, the larger its
size, the bigger and more prevalent its user base and how active the
community is would favor their analyzed frameworks in being
adopted.
Summarizing Pashchenko, Vu, and Massacci
(2020), Larios-Vargas et al.
(2020) and Pano, Graziotin, and Abrahamsson
(2018), developers used information when selecting a library
about (a) the libraries’ project activity and
(b) the libraries’ community. Whereas, information
considered under (a) highlights whether a given
dependency is reliable now, information considered under
(b) highlights whether a given dependency will remain
reliable going forward.
Other than D1, leading question R1 focuses entirely on the domain of libraries themselves. The idea of R1 was to analyze characteristics of surviving and sustainable libraries and their associated repositories, to derive what contraindicates the assessment of dependencies as end-of-support.
Ahead, what drives the survivability and sustainability of a library and its repository is simple: contributor effort. As open-source projects live by their users’ contributions, be it participation or development, a lack of effort will drive a library eventually into abandonment. Though this being the case, what brings in more complexity is the question of how different factors and characteristics of a library itself or its repository influence contributor effort.
What is considered by contributor effort is, for example, from the
view of developers, development activity such as commits or releases,
support activity such as handling issues or fixing bugs and maintenance
activity such as updating dependencies. From the view of the libraries
users, for example, partaking in discussions, generating traffic about
the library or reporting issues.
According to Coelho
and Valente (2017) that analyzed systems no longer under
maintenance by interviewing their developers, among characteristics of
failing libraries, one of the prevalent reasons for abandonment was lack
of time or lack of interest. As open-source projects live by their
users’ contribution effort, both would result in declining project
activity. Following that, commit and release activity would decrease,
issue handling and support provided would plunge, and maintenance
activity would stop. In addition, interviewees further stated being
usurped by competition or becoming obsolete as to why their projects
were abandoned. Both would result in a similar situation of declining
project activity, though, warranted as further effort would be
voided.
Coelho and Valente (2017) further states that projects with low maintainability and based on outdated technology face abandonment by their interviewees. By arguing that high-maintenance libraries claim more resources than low-maintenance libraries and low maintainability and outdated technology would warrant the former, libraries face a higher risk of being abandoned. They cannot generate enough contributing effort to deal with their higher maintenance needs.
Elaborating further, Valiev, Vasilescu, and Herbsleb
(2018) sheds light from a different angle, researching
ecosystem-level determinants of sustained activity. They analyzed
projects and their position in their ecosystem and relationships with
projects upstream and downstream, concluding that the size of downstream
dependencies, i.e., project dependents, are related to greater
probability of the projects’ survival. They reason that the larger a
project’s dependents, the bigger is the pool of potential contributors
the project can attract contributors from. Similar was partially
confirmed by them concerning organizations standing behind projects, as
organizations also present a pool of potential resources. Though, for
example, considering Comino, Manenti, and Parisi
(2007), licensing could have a toll on how successfully a library
can attract new contributors. As contributors usually emerge from a
user-standpoint, strong copy-right licensing can prevent potential users
to adopt a library (Larios-Vargas et al. 2020,
8), that would then count as loosing potential contributors.
Considering Coelho
and Valente (2017), project practices may also affect whether
users become contributors. They state open-source development or
repository practices like providing continuous integration, the project
having a README or LICENSE file, and availability of a project homepage
or guidelines for contributing, to be relevant.
From the point of view of how libraries assert their presence in the
open-source software landscape, the concept of established libraries can
be derived from Samoladas, Angelis, and Stamelos
(2010). The better they are already established in the
open-source software landscape, the harder it is to abandon them. Samoladas,
Angelis, and Stamelos (2010) backs establishment up with
prolonged activity and presence, proven value of the library, and a
sustainable community.
Moving onto the topic of a libraries’ community. Reciting Pano, Graziotin, and
Abrahamsson (2018) that “the community is the heart of an open
source project”, its influence on a project’s success is non-negligable.
Comino,
Manenti, and Parisi (2007) supports this, as they conclude the
size of a libraries’ community having non-linear impact on the
probability of success.
Elaborating further, preceding that a libraries’ community can be characterized by the popularity of the library, and Dey and Mockus (2018) providing insights into metrics used to predict changes in library popularity, these metrics can be used to gain insights into what a libraries’ community is influenced by. Dey and Mockus (2018) found the activity of a library, e.g., number of releases and commits, and the overall commitment by its users, to be the top predictors of change in popularity. Among other predictors, worth mentioning, is the popularity of upstream and downstream dependencies of a focal package. To be noted, the number of downloads of a focal package was used to substitute for its popularity.
Evaluating these findings, one could argue that the popular and
prestigious a library is in its ecosystem, the more supporting and
active is its community and the longer will it prevail. For example,
top-performers such as React13 or Vue14
are fundamental frameworks in web development, accordingly are their
communities established, and both frameworks will be used ever after. In
support, Borges
and Valente (2018) also highlights the measure of popularity and
summarizes that a projects’ popularity was influenced by whether it was
backed up by organizations or owned by established developers. Though,
the most discriminative features were project-related, such as the
recency of the last update and overall project activity.
Summarizing leading question R1, a libraries survival and
sustainability is kick-started by its repositories qualities and active
development attracting users and with it potential contributors. The
bigger the user base, the bigger its community. With a steady
contributing effort of evolving the library, the same gains popularity
and establishes itself in its ecosystem. From there on, retaining
contribution effort is key to survival and secured by active maintenance
and support. All in all, a libraries’ repository starts it, but the
libraries’ community keeps it going.

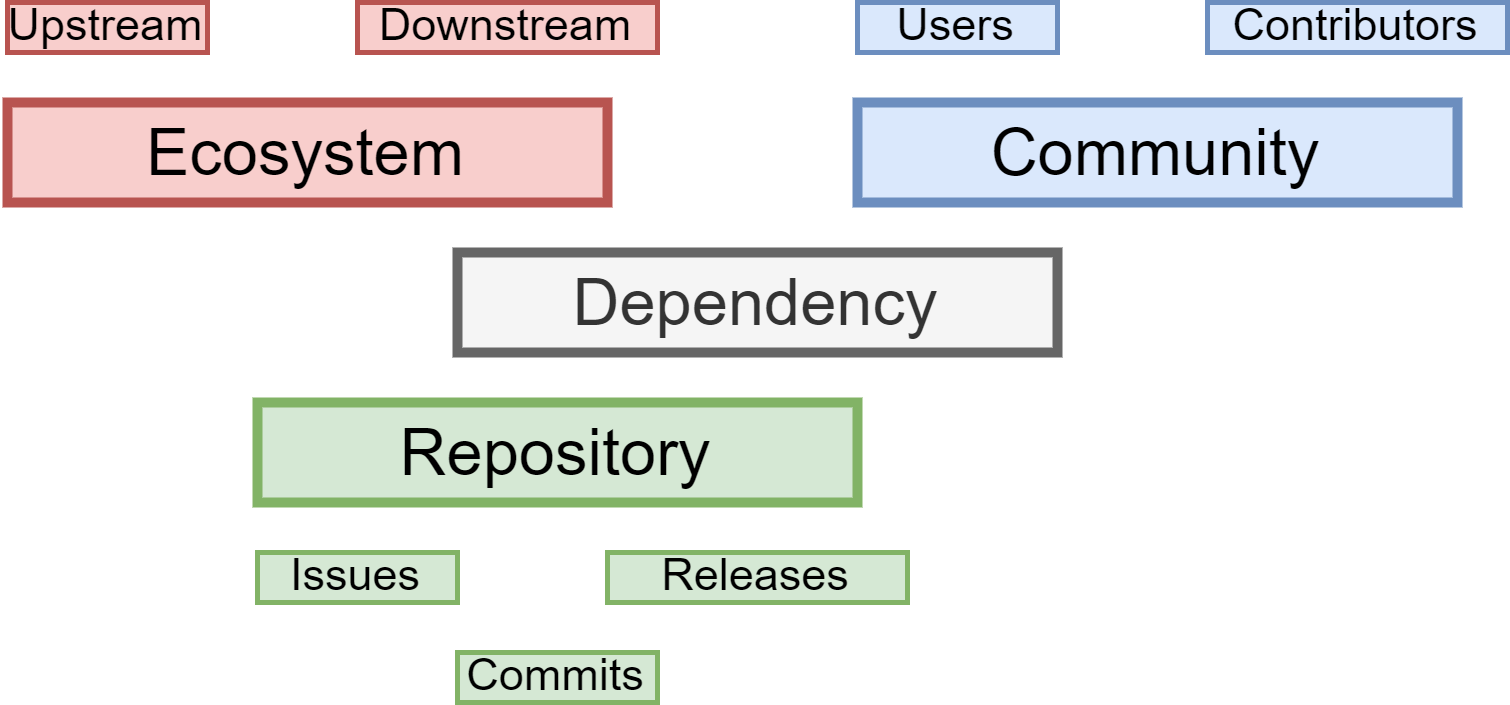

To provide an overview of information derived from consulting literature about leading questions D1 and R1, Figure 2.3 depicts an informational landscape that can be considered for the evaluation of dependencies as end-of-support. In it are domains of information sectioned where information can be categorized to.
includes information about the dependencies’ ecosystem, such as a ranking15 among similar dependencies or the number of downloads. The domain further subjects Upstream and Downstream subdomains, in which information about focal dependencies up- and downstream is categorized. For example, the popularity of dependencies and dependents of a focal dependency.
contains information about a dependencies’ community, e.g., its popularity or its size. Further, information about distinct contributors or users is categorized into their responding subdomains Contributors and Users. The former includes information such as public repositories and their popularity, or what organizations they belong to. In the latter is information categorized such as a users’ participation activity.
accounts for the largest informational content and includes information like the repositories’ owner, if the repository is backed up by organizations or which license the repository subdues. Further, dividing information into subdomains Issues, Commits and Releases with according information related to the subdomain.
lastly includes all other information that cannot be explicitly categorized into the other domains, for example, information about CVEs of a dependency or if newer versions of the same dependency are available.
After categorizing information into their domain, the same information can be characterized in terms of its informational value into two distinct properties: Signals and Metrics. To be noted though that neither of the two is specific to a particular information domain.
are one-dimensional interpreted pieces of information. Given the following example: above is stated that organizations behind a library would let practitioners perceive trustworthiness of the library, associating it with lower risk. To utilize this insight, the following signal can be derived: is a library backed up by an organization? One-dimensional as a signal provokes the information to be either ’yes’ or ’no’, or other forms of the like. Whereby ’yes’ and ’no’ can be interpreted independently and without further context, with which Signals are considered as substantial information.
More Signals, for example, could be: (a) was the last release within the last month?; (b) does the repository have contribution guidelines?; (c) does the repository have known (open) vulnerabilities?; or (d) is the library copy-right licensed?
are multidimensional interpreted information. Unlike Signals, which are distinct, Metrics are continuous. Given the commit frequency referenced before, which can take on a variety of values, Metrics are not readily interpretable and require further contextualization. For example, a commit frequency of ten commits a month has a different informational value depending on the projects’ momentum. For rather small projects that frequency is sufficient as more is not needed to maintain it. Whereas, five commits can be a day’s contingent for other (bigger) projects. In addition, Metrics are not bound to be a statistical measure, but can also be a qualitative measure, such as the quality of technical support given by developers of a dependency.
More information to be considered as Metrics could be: (a) release frequency; (b) average time to close opened issues; (c) the average time for developers to first respond to issues; or (d) the popularity of a library.
In the attempt to develop a comprehensible and approachable theoretical concept, the use of information collected in section 2.3.1 in its present form turned out to be too complex and fine-grained to deal with. It was not reasonably possible to combine said information and weight it against each other to classify dependencies as end-of-support.
Since developing a theoretical construct with information that is too fine-grained would not be flexible enough for practice, an approach to map the information landscape built in section 2.3.1 into more manageable plots was considered. Therefore, this section proposes the approach of abstracting the information in section 2.3.1 into Statements.
as used in this work, are an initial abstraction mapping that shapes information to facilitate handling, combination and trade-off in classifying dependencies as end-of-support.
The following are Statements and their detailed composition to be used in classifying dependencies as end-of-support, derived from section 2.3.1 and utilizing information and insights therein:
gives measures whether a dependencies project follows common open-source practices such as providing a README or LICENSE file, contribution guidelines, and templates. Though, also covering topics like development practices such as adopting continuous integration.
of the dependencies’ repository is one of the most prevalent factors contraindicating end-of-support. Arguing that a dependency cannot be considered as end-of-support if its repository is sufficiently active.
The leading question of Activity is whether activity in the dependencies repository contraindicates end-of-support. Activity concerns topics like development and maintenance statistically. To assess stated topics, information mapped is foremost from the Repository domain and its Commits, Issues, and Releases subdomains. More detailed, Activity can utilize, for example, commit and release frequency and how many issues the repository receives. As Activity concerns information statistically, further contextualization, for example, how recent activity happened, is not considered.
similar to the Activity statement, covers the Issues and Releases subdomains, but assessing whether recent activity was impactful. Impact serves the purpose of measuring the impact of change by evaluating whether recent activity brought change to the repository, assisting in differentiating, for example, between projects in development and maintenance.
Differentiating, for example, between feature commits or automated dependency updates. Projects such as the former, with predominantly impactful frequent activity, are to be considered differently than projects such as the latter, with predominantly lesser impact frequent activity.
focuses on the question if the repository has gotten updated recently. It utilizes information mainly from the Repository domain, specifically the Commits and Releases subdomains. A recently updated, especially recently released dependency is contraindicating end-of-support.
is the next Statement proposed. The gist of it is to state whether a dependencies repository provides support to its users, contraindicating end-of-support.
The leading question for Processing is whether a repository processes its issues and evaluating how issues are handled. By tapping into information from the Repository domain, specifically the Issues subdomain, this Statement concerns the support topic and whether provided support can be considered as qualifying. In detail, Processing can utilize information such as the closing time of issues and how efficient the repository keeps their issues in check.
like Processing uses information from the Issue subdomain, but differs in the sense that, apart from Processing concerning whether issues are processed, it assesses whether specifically not closed issues are engaged with by the repositories contributors or not given any attention at all. Issues not being closed but actively discussed contraindicate end-of-support, with which Engagement somewhat functions as a counterweight to Processing.
addresses whether a dependency and its repository has dedicated contributors. Using the Repository domain and information about the activity of contributors via the Commits subdomain, Core Team assesses whether the repository has a strong enough team to keep the dependency afloat.
indicates whether dependencies have associated vulnerabilities, especially CVEs, and if those vulnerabilities have been fixed or not. On one hand, existing but fixed vulnerabilities would indicate maintenance and support, on the other hand, not fixed vulnerabilities and for how long they are known, especially CVEs, would indicate towards end-of-support.
deals with the question if the practice of back porting is observable in a repositories’ development. Meaning that developers also patch major issues and especially CVEs into past versions of the dependency. The term ’long-term-support’ is used for such versions treated with higher priority. The purpose of this Statement is to differentiate when classifying a dependency as end-of-support and the former is not considered as the latter, whether the same applies for a specific version of said dependency.
describes a dependency of contextual competition it faces. For example, whether newer versions of the same dependency are available or alternative dependencies covering the same use case and how popular those are. The purpose of this Statement is to assess how broad the possibilities are for users to replace the dependency.
measures just that: how popular is a dependency. Possibilities to utilize different substitutes for popularity, as also used in literature, are, for example, downloads or how many projects the dependency is used by. The Popularity Statement, though, has no specific domain it utilizes information from.
as Statement has its purpose to measure how networked a dependency is. Meaning how many connections a dependency has, be it to other dependencies, dependent projects, contributors, organizations and so on. The background for this Statement is that one connection could be a possible resource the dependency can use, arguing that bigger and more prevalent dependencies have more connections going outwards than smaller ones, and, therefore, a higher possibility to sustain.
evaluates the upstream context of a dependency about disadvantageous characteristics. The gist of Upstream is that, as an extreme example, if a dependency itself uses end-of-support dependencies, the higher the probability that the dependency itself is end-of-support.
similar to Upstream, evaluates the downstream context of a dependency. Arguing that if a dependency is used by many dependents and those are being active themselves, the higher is the dependencies chance of not becoming end-of-support. The bigger the number of dependents, the bigger the possible resource pool as numerous depend on it.
discloses information about how strong a dependency is backed up by utilizing the Repository and Community domain, and information like organizations or sponsors therein. The more backed up a dependency, the higher the chance of survival.
provides insights about the contributors of a dependency. Differences can be found on projects with core contributors who have a certain prestige, i.e., backed by organizations, sponsored, high overall activity, and projects with contributors voluntarily contributing in their spare time. Prestige gives a measure to that. Arguing that dependencies being developed by prestigious contributors have a higher chance of surviving than those without, Prestige can indicate towards higher probability of support to be expected.
looks into how active the dependencies users participate in its project that is specifically not development or maintenance related. Participation considers, for example, user activity in issue discussions. Its purpose is to further assess the dependencies community and how active and engaged its users are.
considers preliminary factors that explicitly consequent the dependency to be classified as end-of-support. For example, if the dependencies developers officially disclosed their dependency as end-of-support via official channels, the project’s homepage, or somewhere stated in the repository.
covers the beneficiality of a dependencies licensing if a situation occurs that given users have to fix their dependency themselves. Though that this Statement cannot independently indicate towards end-of-support, it influences the classification of a dependency as end-of-support. It follows the argument that restrictive licensing hinders the adoption of a dependency and the potential of another party taking over maintenance. The latter may be the case if the dependency is no longer maintained and support from its original developers is lost.

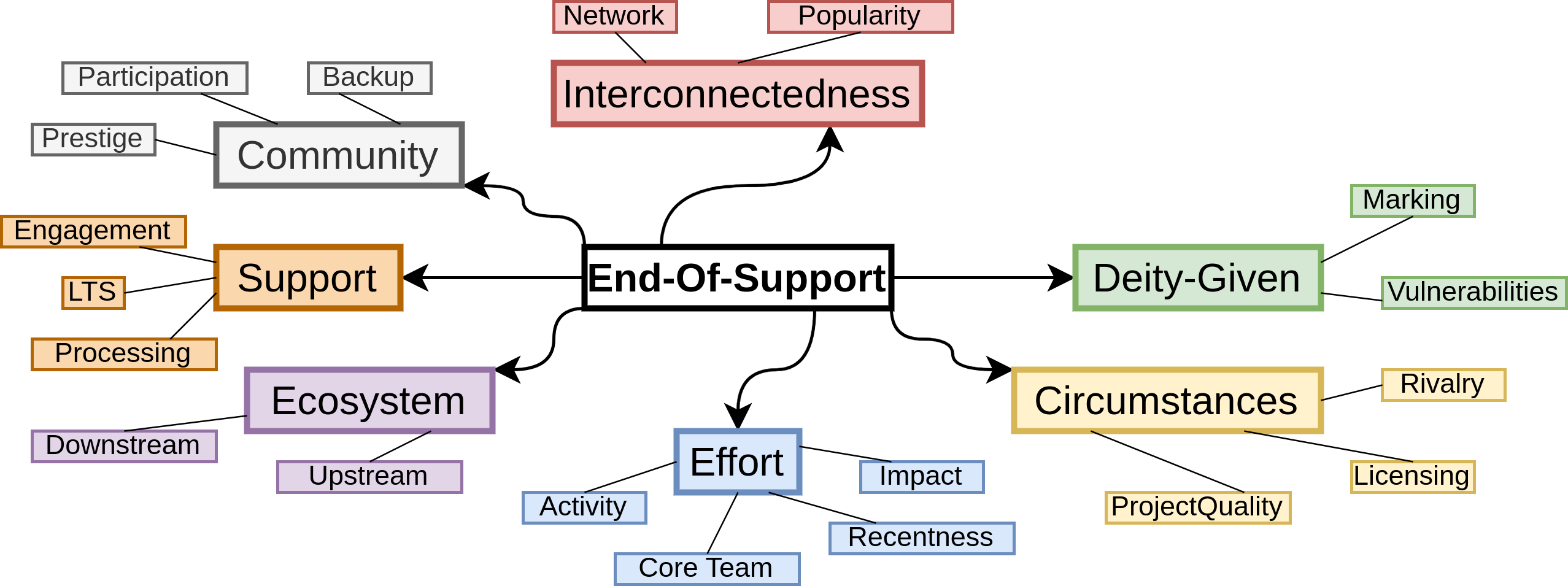

Statements, introduced in section 2.3.2, enable the theoretical concept of classifying dependencies as end-of-support to be based on more abstract and constant information. Further, subdividing Statements into distinct factors representing core characteristics of a dependency in terms of end-of-support, proposed in this work as EOS Factors, leverages the theoretical concept into a more comprehensive and approachable one. Finally, the framework for classifying dependencies as end-of-support referenced in this work as EOS Abstraction Framework is proposed as the core of chapter 2. The EOS Abstraction Framework utilizes aforementioned EOS Factors and enables combination, trade-off, and conclusion of information to classify dependencies as end-of-support.
utilize the informational value of Statements, combining them and setting them into relation. Following are the seven distinct EOS Factors used further in this work to classify dependencies as end-of-support:
characterizes a dependency about how much momentum a dependency has. Key Statements are: Activity, Core Team, Recentness and Impact.
characterizes a dependency about how much support a dependency provides to its users. Key Statements are: Processing, Engagement and Backporting / LTS.
characterizes a dependency about its ecosystem and whether beneficial and advantageous factors are given. Key Statements are: Upstream and Downstream.
characterizes a dependency about its community and whether the dependency could rely on it to receive sufficient ’drive’ to survive. Key Statements are: Backup, Prestige and Participation.
characterizes a dependency about its integration and establishment in the software development landscape. Key Statements are: Popularity and Network.
characterizes a dependency about different factors influencing the classification of a dependency as end-of-support. It functions as a general collection basin for Statements that are not used elsewhere. Key Statements are: Licensing, Rivalry and Project Quality.
characterizes a dependency about preliminary factors indicating end-of-support, which would void further assessment. Key Statements are: Marking and Vulnerabilities
functions as a framework within where EOS Factors can be used to classify dependencies as end-of-support. Figure 2.4 summarizes Statements and EOS Factors and sets them in relation to each other, depicting the domain of the framework. Further implementation based on it is open to modification of how individual EOS Factors are handled. Meaning by that, the EOS Abstraction Framework does not prescribe that, for example, Community and Ecosystem in their informational value have to be evaluated together with a 2:1 ratio. The EOS Abstraction Framework much more acts as an enabler, enabling individual utilization and policies to assess dependencies as end-of-support in a more approachable and comprehensive way, rather than enforcing predefined rules or interrelationships not being able to adjust to different situations.
In advance of designing and implementing a software solution, presenting general conditions and use cases, and analyzing requirements for the same is a vital step to establish a foundation to be built upon. The goal of this chapter is to define requirements for a software solution detecting end-of-support dependencies. To be noted is that the analysis is done within the context that the software solution implemented in this work cannot finally cover everything there is to cover within such a large and differentiated field of dependencies. Requirements discussed are designed under the premise so that the software solution can remain persistent and be extended even after this work.
Ahead, conditions and use cases are catered towards the use of the software solution within the software development department of Device Insight, which this work is supported by. The same applies for set requirements, which were internally discussed within the same department.
The foremost use case is to be able to analyze dependencies on a project-based scope. Since projects can contain many dependencies, it becomes tedious from a dependency management standpoint to analyze each dependency individually.
Furthermore, dependencies to be analyzed, concern projects from the application and web development domain. This is set, as dependencies used within the software development department of Device Insight mostly come from these domains. Though possible to analyze dependencies from, for example, docker containers16 upon the base of trivy17, this not primarily focused on.
Integrating the software solution into Device Insights software development department is planned within continuous integration pipelines. Whereby results are valued over performance, as the need to run end-of-support dependency analysis for projects is rather infrequent.
Crucial for the usability of the software solution is the possibility to use it independently of any project and context. Therefore, the software solution should enable agnosticism of ecosystem, programming language and build tool. In other words, the tool should be able to work with any kind of dependency in any project.
As the landscape of software development is very broad, so are distinctly different dependencies in use. The overarching purpose of this requirement is to ensure agnosticism without demanding all kinds of dependencies being covered from the get go.
Consequential to Project Independence is the need for the software solution to be able to work with information from differing origins. This requirement ensures that the software solution functions data origin agnostic. Since different projects utilize different dependencies, which in turn have different data origins, fetching information from one central data origin covering all kinds of dependencies is not possible. For example, developing an application in the NPM18 ecosystem opens the door to pulling information from npmjs.com. For applications developed with Maven19, for example, this is not possible. Instead, information regarding the Maven ecosystem can be fetched, for example from mvnrepository.com.
In addition, following from the agnosticism of data origins, the software solution has to be able to handle either missing or low-quality data. Depending on the dependency, there is sometimes less and sometimes more information to be obtained. Furthermore, the same applies to the quality of the information. Following that, this requirement further ensures that the software solution has to work with whatever data is available for a given dependency. Though, it should be clear that by above stated, any strict requirement of accuracy or validation is voided. As the software solution has to be able to work with altering and optional data origins, information fetched from said sources to be evaluated on either informational correctness or reliability is not demanded.
Similar to Project Independence, the overarching purpose of this requirement is to ensure data agnosticism without demanding to cover all kinds of dependency data origins from the get go.
To round out the previous two requirements, the software solution must be designed to ensure expansion of dependency domains and thus data origins. This requirement ensures that the software solution is implemented so that, for the beginning, a limited set of dependencies is supported, but being expandable to support not yet supported dependencies. For example, initially supporting dependencies from the Maven ecosystem, but being expandable to also support dependencies from the NPM ecosystem.
The requirement of Integrability has the purpose to ensure that the software solution can be used under different premises. For example, to be used as a command line interface tool, or be provided as a service. Depending on the use case, having the possibility to choose how one integrates the software solution into their workflows is nothing short of beneficial. However, this requirement does not state to integrate the software solution into different premises initially, though to ensure integrability and to evaluate a suitable integration.
The software solution presents an implementation of a theoretical concept elaborated for the first time in this work. Given this circumstance, the software solution and its assessment of dependencies as end-of-support is more focused on feasibility and practicability.
How successful and accurate dependencies were assessed takes on a secondary role. Therefore, the requirement of Out Of Scope the software solution to guarantee correctness of the assessment to its users is not in the scope of this work. Nevertheless, evaluating the implementation against an evaluation set of dependencies is necessary to ensure that the proposed direction is not misleading.
This chapter goes in-depth about designing a software solution for automated project-based end-of-support dependency detection – deprec. Presented is its technical conception along with the utilization of the EOS Abstraction Framework proposed in chapter 2.
Deprec has to handle different dependencies with differing conditions. Be it what ecosystem they are developed for, or where and how they are distributed. To be able to work with various dependencies and to fulfill requirement Project Independence, a common ground for dependencies was needed. Software Bills of Materials (SBOMs) were chosen as input of deprec, to base the end-of-support dependency detection on.
SBOMs20 are a standardized inventory of a project’s components with information about the same, used in software development and supply chain, asset and vulnerability management. Focusing on dependencies, SBOMs provide information about the supplier, name and version, unique identifier and relationships to other dependencies (transitive dependencies).
Further, SBOMs operate ecosystem, language and platform independent, suitable for deprec’s use case and functionality. Conceptualizing deprec on top of SBOMs as input offers built-in standardization and allows for achieving the Project Independence requirement in full length.
Since SBOMs in and of itself is solely a defined concept, different standards exist. This section raises requirements for an eligible standard and substantiates a suitable standard to be used for deprec going forward:
Foremost, as SBOMs will function as input of deprec, the same cannot be used without an SBOM at hand. Therefore, it has to be easily possible to produce SBOMs for any given project. Following that, the eligible SBOM standard requires offering various supported tools accommodating different projects to be able to generate SBOMs for them.
Moreover, since projects can utilize different versions and artifacts of the same dependency, deprec needs unique and identifying information associated with a dependency.
Finally, the eligible implementation of a SBOM can provide a broad information spectrum about a dependency to be leveraged to fetching information from data sources.
21, though satisfying the minimum SBOM standard, is rather inconvenient for this use case. The leading idea of SPDX, maintained by the Linux Foundation and its contributors, is to enable data exchange of open-source dependency information. Information about identification, due diligence, and analyses and resulting insights that is rather performed independently by organizations, to be collected and shared in a common format.
Elaborating further, SPDX does not offer easily readable data formats such as JSON conveniently and is not conveniently to be integrated into deprec. In addition, information provided22 by the standard is not detailed and broad enough to be used to satisfaction, missing fields like cryptographic hashes for distinct artifacts.
23, on the other hand, offers better
capabilities to be integrated into deprec. It focuses more on
security and vulnerabilities, providing information about dependency
identities themselves and less about exchange between entities. The
standard offers detailed and distinct information about dependencies,
such as dependency coordinates and the package URL24,
external references to version control systems, distributions and issue
trackers, or cryptographic hashes identifying specific dependencies’
artifacts. Moreover, officials and the community behind CycloneDX offer
broad tooling to produce and consume CycloneDX SBOMs for different
ecosystems.
To summarize, CycloneDX fits the use case better than SPDX does. The
above stated requirements (i), (ii) and
(iii) are achieved to satisfaction with CycloneDX’s SBOM
standard providing various identifiers, external references for more
information, and its established official and community support offering
various tooling.
As a follow-up on the previous section 4.1.1,
CycloneDX’s SBOM standard is looked at in more detail how it can be
integrated into deprec. The main benefit of CycloneDX’s SBOMs,
in the context of deprec, is its capability to summarize a
project’s dependencies into identifiers that can then be leveraged into
fetching more information from various data sources. CycloneDX SBOMs
provide a variety of information, the example in Listing 4.1 shows a
dependency and its information provided.
{
...,
"group": "com.google.guava",
"name": "guava",
"version": "24.1.1-jre",
...,
"hashes": [...],
...,
"purl": "pkg:maven/com.google.guava/guava@24.1.1-jre?type=jar",
"externalReferences": [...]
}in Listing 4.1, line 3-5, build the base identifier for a dependency: group:name:version. This trinity is used to identify a dependency conveniently and generally without further detail.
Its use within deprec is to keep an association for further proceedings concerning a given dependency.
in Listing 4.1, line 7, are cryptographical hashes to identify specific artifacts of a dependency, such as the dependencies’ software package artifact. In this example, identifying the .jar file, i.e., the archive package file where the source code of the dependency is stored, for the guava:24.1.1-jre dependency.
The Maven Central Search REST API25, for example, allows searching for dependencies by their SHA-1 hash, which is provided by the CycloneDX SBOM. Searching for dependencies by hashes prevents possible misinterpretation. Two dependencies can have similar coordinates, making it more difficult to filter manually, hashes help with that.
in Listing 4.1, line 9, provides the dependencies package URL, a standardized approach of reliably identifying and locating software packages across ecosystems.
Consuming the Sonatype OSS Index REST API26 to request a dependencies’ vulnerability report, for example, warrants such an PURL to access the API.
in Listing 4.1, line 10, is among the most valuable reasons why the CycloneDX SBOMs standard was chosen for deprec. Associating a dependency with, for example, its repository, issue tracker or a distribution would certainly be possible, but would be a hurdle to overcome. All three are important sources of information, with the repository arguable being the most important among them. The CycloneDX SBOM directly links to said sources of information, to the advantage of deprec.
To assess dependencies about their end-of-support status, data has to be collected about a given dependency to obtain information about it, as referenced in Figure 2.3. The extraction phase, as the initial step of deprec towards the assessment, collects data about a given dependency from various of its available data origins.
Following that, keeping requirements Data Independence and Expandability in mind, the extraction phase must have a modular design. Therefore, the extraction phase is split up to accommodate different Extractors with differing internal logic according to their data origin, but all doing the same thing: collecting data. Splitting the extraction phase into modular Extractors, enables the extraction phase to function independent of a particular dependency and to be expandable for more data origins if needed.

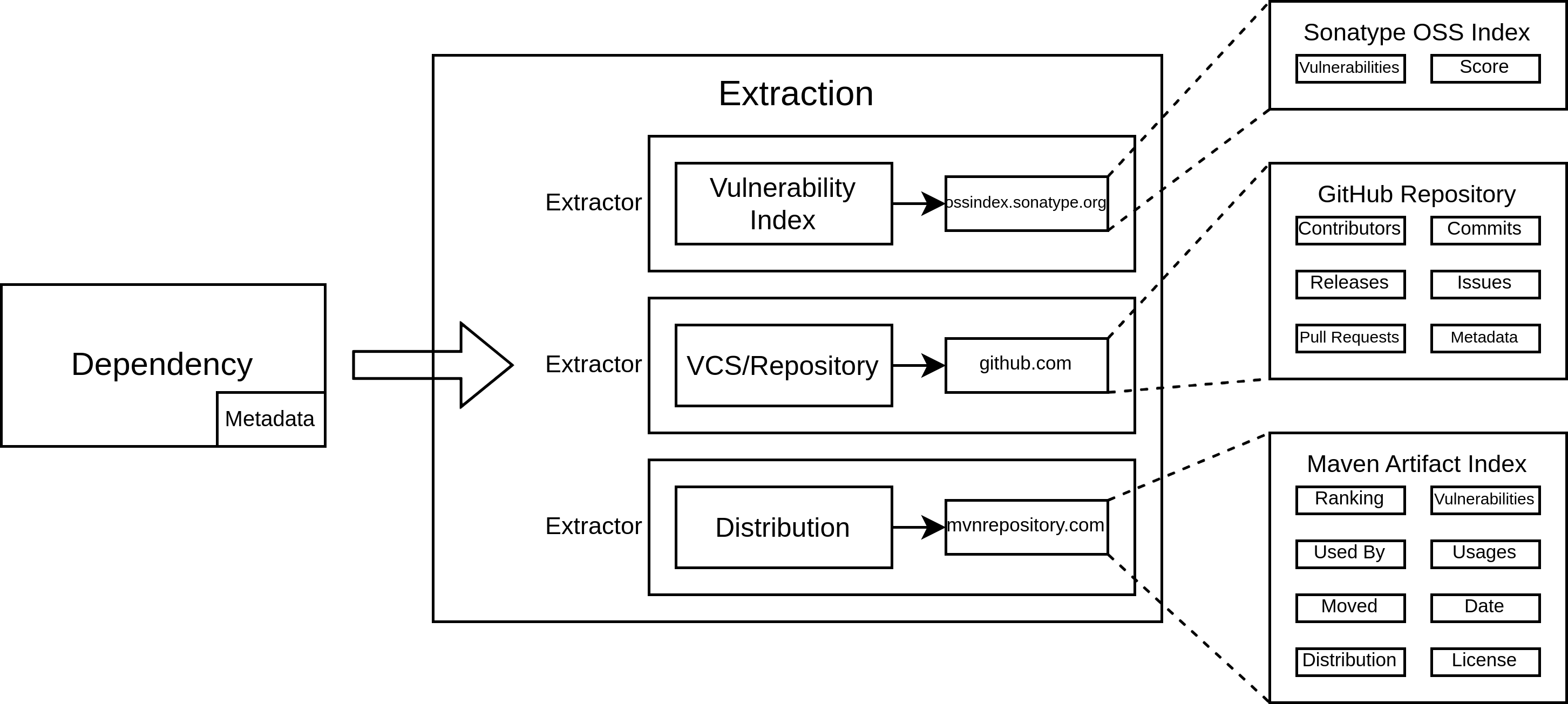

Figure 4.1 depicts exemplarily the extraction phase for a Maven dependency, showing example Extractors for a vulnerability index, repository, and distribution, alongside the exemplary data that can be collected from the according data origin.
Extractors depicted are, from top to bottom, extracting data from the Sonatype OSS Index, GitHub repository, and Maven artifact index via their according APIs. Though Extractors are not bound to be consuming APIs, instead, Extractors can be implemented independently according to their data origin and fetch data from it.
Since different Extractors are used in the extraction phase and these Extractors either collect different data or more or less the same data only from other data origins, a common basis for further use of the data is required. For example, extracting data from a dependencies repository and its distribution results in different data. The former gives, for example, data about commits, whereas the latter gives, for example, data about a dependencies number of downloads. Further, a given dependency can be developed on github.com, yet another on sourceforge.net. Both give repository-related data, but both would require two distinct Extractors.
The point is that, in order for deprec to achieve requirement Data Independence yet remain abstract and constant in further proceedings, a data model is elaborated in which Extractors store their extracted data. This data model functions as an abstraction layer between the extraction phase and assessment of a dependency as end-of-support.
To be noted, even though Figure 2.3 is referenced in section 4.2, it is to be differentiated from the data model elaborated in this section. The former divides the landscape of information into domains of informational value, while the latter reflects data extracted in an abstracted and unifying form.
The structural design of the data model is aligned with the data origins from which the Extractors extract their data. The Appendix A contains the data model depicting different data fields, though with a depth of one. By depth is meant that, for example, Organization listed under Repository would contain further information such as collaborators within the organizations, the organizations repositories or their sponsors. For reasons of space and clarity, deeper going data has been omitted.
Important for the data model is that it can be expanded if one were to extend data origins that would require data of their own. At the time of this work, the following data source origins are listed: Repository, Distribution and Vulnerability Index. Further, the fields listed are designed by considering, in order in which they were listed, github.com, mvnrepository.com and ossindex.sonatype.org.
Considering fields for Repository, one notices more or less resemblance to data found on github.com. It is set this way deliberately, as GitHub repositories represent the vast majority of where open-source software is developed (“Octoverse 2022: The State of Open Source” n.d.).
Elaborating further, Distribution is split into Library and Dependency. This has the background that information on distributions can be specific about a dependencies version, as well as general across all versions. Considering mvnrepository.com, it provides numbers of downloads about a dependency summed across all its versions, as well as numbers of downloads for a specific version. The distinction helps to make more accurate statements, for example, between the popularity of a dependency and the popularity of a particular version of it.
With data extracted and refurbished, this section describes the integration of the EOS Abstraction Framework proposed in chapter 2 into deprec. It elaborates on the utilization of data according to their informative value and proposes the approach on evaluating Statements and EOS Factors.
Data extracted as described in section 4.2 has to be
interpreted in terms of information referenced in section 2.3.1 in order to evaluate
Statements listed in section 2.3.2.
Given a collection of commits, no information results from the
collection of commits itself and the Statement of
Activity, for example, cannot be inferred. To gain information,
it must first be concluded from the collection to subsequently infer
Activity. Therefore, the data extracted is interpreted and
converted into characterized informational value described in section 2.3.1: Signals and
Metrics.
{
Organization: {Name: ...},
License: {Title: ...},
LatestRelease: {Timestamp: ...},
Commits: [
Commit: {...}, ...
],
Vulnerabilities: [
Vulnerability: {...}, ...
]
}S1. Repository backed by organization?
S2. Dependency has vulnerabilities?
S3. Latest Release within given threshold?
—
M1. Average organizations per contributor
M2. License restrictiveness
M3. Impact of latest release
Given exemplary data in Listing 4.2 and selected Signals and Metrics in Figure 4.2:
are ’answered’ in the sense that data is evaluated to verify whether a given Signal indicates ’yes’ or ’no’, or the like: S1 can be answered by verifying if appropriate data in Organization is present; S2 is answered by verifying if Vulnerabilities has any vulnerabilities listed; S3 can be assessed by comparing the timestamp of LatestRelease.
are handled in the way that extracted data is turned into fitting a given Metric: M1 is achieved by averaging the count of organizations per contributor; M2 is evaluated by verifying License and assessing how restrictive the given license is; M3 can be measured by analyzing the release’s content and what changes were released, for example, whether features are added or not.
To be noted, Metrics, when converted from extracted data, apart from Signals, have to be interpreted further, for example, by comparison against a given threshold.
To evaluate Statements listed in section 2.3.2, corresponding Signals and Metrics are utilized and evaluated based on the informative value they carry.
Given the example of the Statement Backup, utilizing Signals and Metrics such as: (a) repository is backed up by organization; and (b) average organizations per contributor. Though (a) and (b) carrying informative value and being independently evaluative, they cannot be evaluated manageable in combination. Evaluating \(n\) Signals, in combination, would result in \(2^n\) different combinations. If Metrics are added, it becomes even more unwieldy. To conclude, for Backup to be evaluated based on (a) and (b), a unifying basis for the evaluation of Statements is necessary.
Therefore, the evaluation of Statements utilizing Signals and Metrics is carried out as follows: Statements are evaluated by evaluating Signals and Metrics, with which in turn are Points distributed according to whether they favor the Statement regarding its statement, thus indicating about the end-of-support status. Whereby Points can be distributed into binary categories such as ’in favor of EOS’ and ’not in favor of EOS’, or the like. Though, distributing Points in more sophisticated and fine-grained categories is also possible. Overcoming the above exponential problem, the approach of distributing Points breaks possible results down to \(m\) categories for \(n\) Signals and Metrics. In addition, how many Points a given Signal or Metric distributes can be decided in relation to other Signals and Metrics or individually, depending on the Signal or Metric.
In the given example of Backup, this means that evaluating (a) would distribute Points based on if (a) independently favors Backup regarding strength of a dependencies backup. If the repository is backed by an organization, (a) would indicate in favor of Backup thus contraindicating end-of-support, and Points would be distributed into the according category. The same would take place for (b). Finally, a distribution of Points can be interpreted as the evaluation of Backup based on utilized Signals and Metrics.
Regarding the requirement of Data Independence, the approach of distributing Points has the advantage that if more Signals or Metrics are to be evaluated for a given Statement, they can be added without interfering with other Signals or Metrics. The same applies for missing data, it can be ignored and does not affect the Statement. If data is missing, no Points are distributed. Though, the informative strength of the Statement decreases the more data is missing.
To evaluate EOS Factors described in 2.3.3, corresponding Statements listed in the same are combined and adapted into a given EOS Factor. The combination of Statements works on the same basis when evaluating Statements as described in section 4.4.2: Points distributed by Statements are taken over into a given EOS Factor, resulting in a composite distribution of Points to categories by a collection of Statements. Though EOS Factors would inevitably also take over categories from their Statements, they would function nonetheless the same for EOS Factors, as given the example of ’in favor of EOS’ and ’not in favor of EOS’. In addition, Points taken over from a Statement can be weighted additionally to set the Statement in relation to other Statements.
Consequential to the adoption of Statements into EOS Factors would be the preceding definition of categories that Points are distributed to, which would be applied in all Statements and EOS Factors consistently.
Following the integration of the EOS Abstraction Framework and evaluation of EOS Factors, both are utilized to assess dependencies as end-of-support. As the EOS Abstraction Framework ends with EOS Factors, following, the combination of the latter among themselves and subsequently conclusions drawn from combining EOS Factors is described.
describes that EOS Factors take over and composite Points distributed by their corresponding Statements. Therefore, the evaluation of a particular EOS Factor is in the form of distributed Points to categories. For combining EOS Factors, the same can be done: Points taken over by EOS Factors from their Statements can be composited to form a final composited distribution of Points. This final distribution of Points to categories represents the classification of a given dependency as end-of-support.
Given example categories such as ’in favor of EOS’ and ’not in favor of EOS’, the final distribution would result whether data extracted and information utilized favors a dependency being classified as end-of-support, and thus, whether the dependency is classified as end-of-support.
When combining EOS Factors, Deity-Given acts as a preliminary factor to all other factors. Effort and Support share the higher position in relation to remaining EOS Factors, as the two describe the ’as is’ aspect of a dependency. Coming in second, Interconnectedness and Community enable the ’going forward’ aspect to be extrapolated. Circumstances and Ecosystem are apart from the above, and give indications separately. Following that, the combination of EOS Factors has to consider these aspects and prioritize EOS Factors accordingly. As the combination of EOS Factors results in a composite distribution of Points, EOS Factors can be weighted accordingly when their distributed Points are added to the final composition.
With the result of the combination of EOS Factors, and therefore the classification of dependencies as end-of-support, being a distribution of Points, conclusions drawn are based on the same. To enhance the result in terms of usability, a customized normalization function27 can be applied to the distribution resulting in probabilities. Given the example of (a) ’in favor of EOS’ and (b) ’not in favor of EOS’. Points distributed are transformed, for example, to form the result of a dependency being end-of-support to a percentage of 76%, i.e., \(a \hat{=} 0.76\) and \(b \hat{=} 0.24\).
Further, disclosed as the result of the classification of a dependency as end-of-support is not the category with the highest probability of all. Instead, disclosed are all categories with their according probability. The use of disclosing all categories with their probability is far greater than to only disclosing the category with the highest probability as a result. Given the example of two categories, a given distribution of Points, though extreme, could result in percentages such as \(49/51\). Disclosing all of them as the result of the classification assures that information is not lost. How to interpret the information and act upon, however, is up to the user.
The process described from section 4.2 all the way to section 4.5 has to be executed for each dependency independently. Therefore, deprec works upon an agent-based framework, where each dependency is handled by an Agent: from extracting data, to evaluating Statements and EOS Factors, combining the latter and concluding about a dependencies end-of-support status.

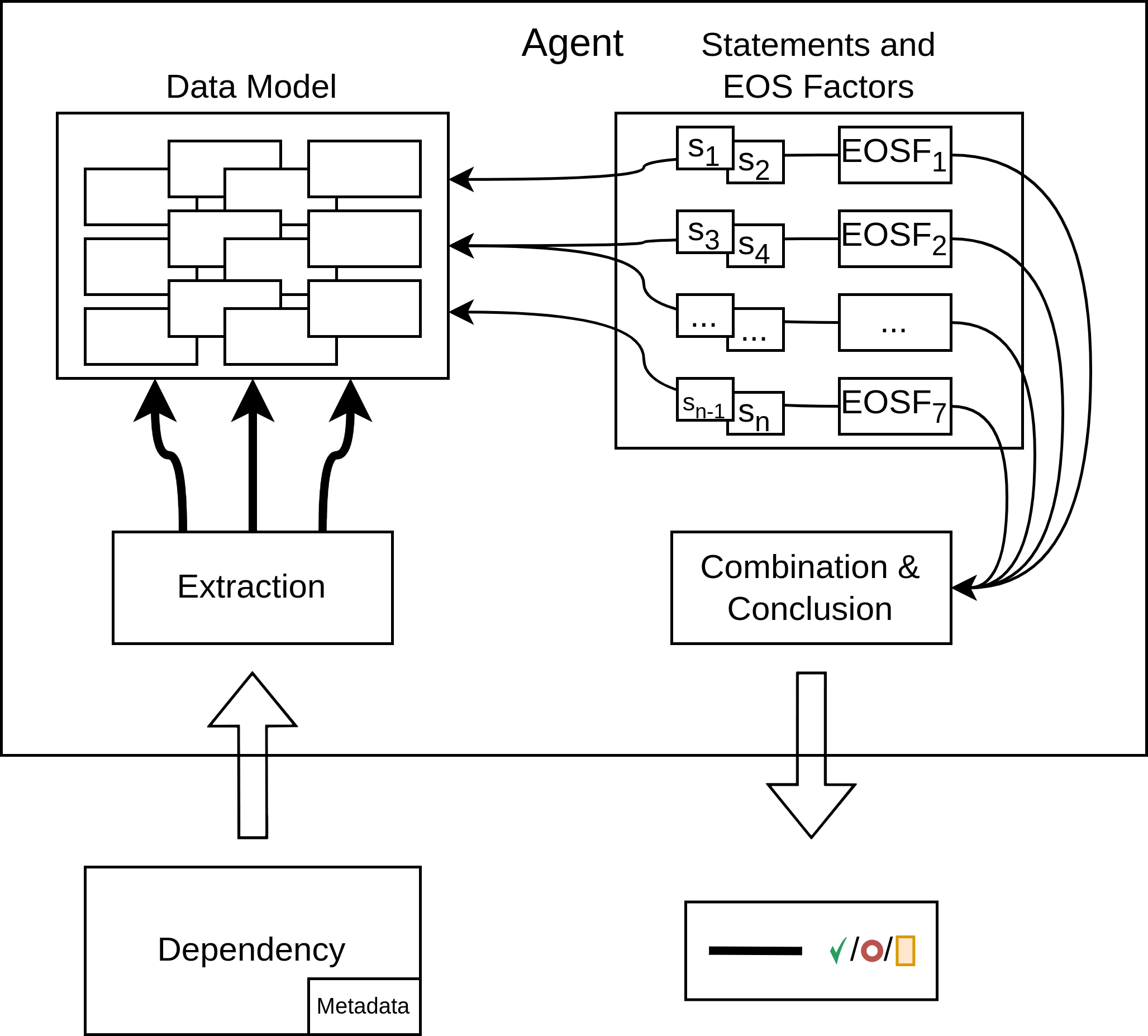

Within deprec, Agents are created and dependencies are assigned for processing. Figure 4.3 represents the internal logic of Agents and is modelled on the sections described hereinbefore. Agents receive dependencies with their metadata extracted from the SBOM, which deprec receives as input prior, and perform the extraction phase with Extractors according to their dependency. Finished Extractors enter their extracted data into the data model, with which Agents evaluate Statements and thus EOS Factors. This is followed by the phase of Combination and Conclusion, in which Agents combine EOS Factors and a final distribution of Points is composed. As a result, Agents return the distribution of Points, which is converted into probabilities for classifying their respective dependency.

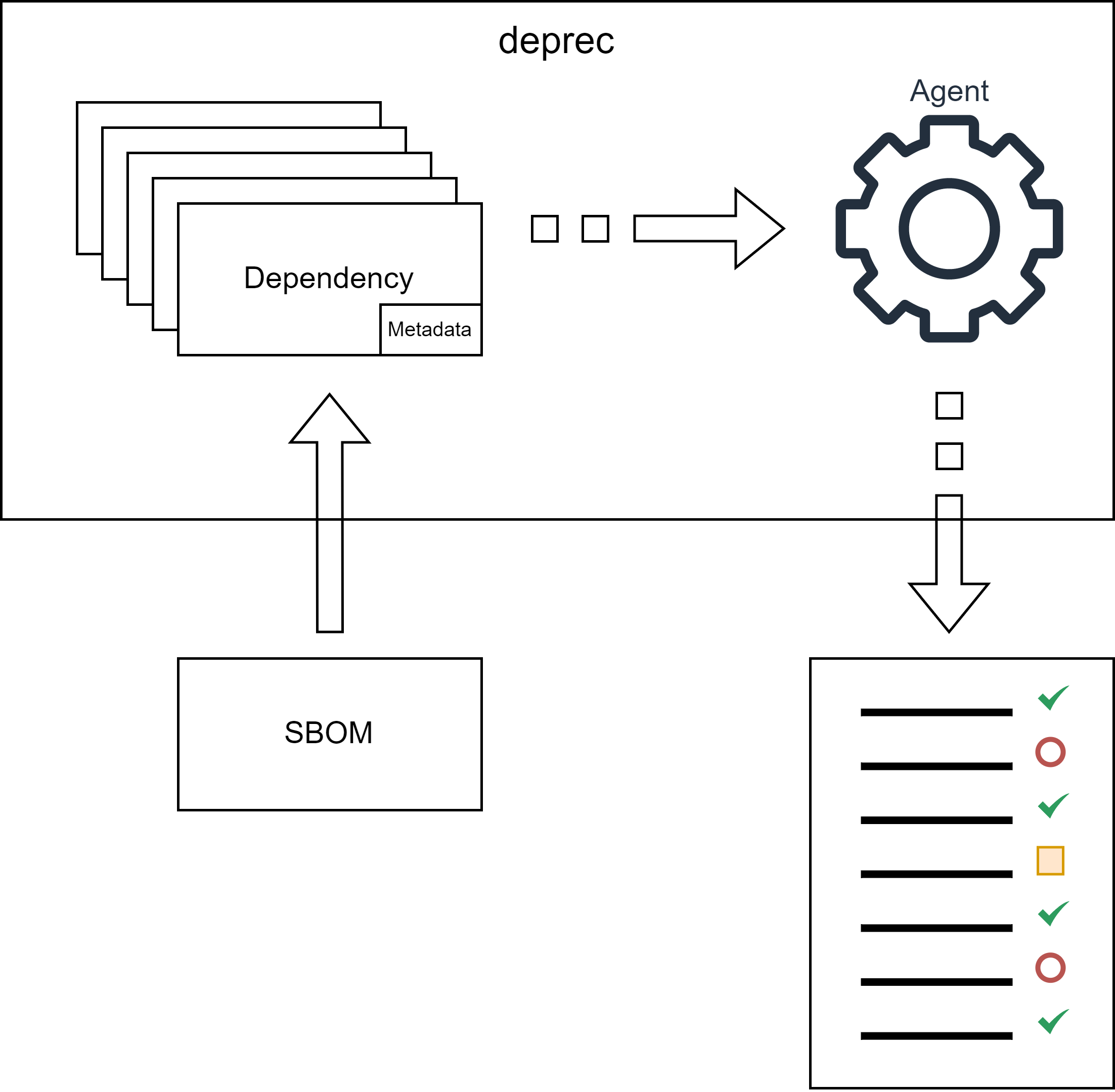

To round off chapter 4, Figure 4.4 represents deprec’s top-level view: a generated SBOM for a given project is taken as input by deprec; the SBOM is decomposed into its listed dependencies with corresponding metadata; for each dependency is an Agent created, and the classification result collected; a report whether the project contains dependencies classified as end-of-support represents the output of deprec.
Following the technical conception of deprec proposed in chapter4 with set requirements described in chapter 3 for the same, deprec can be implemented28. This chapter provides insights into the implementation of deprec, going into detail of how the extraction of data and the evaluation of Statements and EOS Factors is implemented. Further, describing how deprec can be used in practice and its limitations occurred during implementation discussed.
The following are general conditions with which the implementation of deprec was accomplished. They pose leading implementation decisions which are specific to the implementation within this work to specifically foster section 3.1.
Deprec was implemented using the Go programming language29. The implementation of the extraction phase of deprec sets itself within web development due to data extracted being foremost fetched by consuming APIs. Furthermore, due to the agent-based framework described in 4.6, performance and concurrency play a role. Lastly, considering requirement Integrability , deprec can be implemented, for example as a command line interface tool or service.
Following that, the Go programming language is suitable for development within the web environment to consume APIs. Further, Go is popular for backend purposes within a service, as well as suitable for developing a command line interface tool. Concerning performance and concurrency, Go enables to handle both reliably with its go routines.
Since, among open-source projects, github.com presents the most popular place to develop and collaborate, further Extractors apart from the one for github.com repositories were not considered for initial implementation.
In unison with section 3.1, the implementation of deprec is foremost concentrated on detecting end-of-support dependencies within the Maven ecosystem. Following that, the extraction phase implemented concentrates on Extractors for data origins of dependencies within the Maven ecosystem. Therefore, data origins for information explicit about Maven dependencies that come in question are either mvnrepository.com or search.maven.org. Data available is more or less similar on both sources, but more detailed and approachable in the former. The former though offers no official approach on accessing available data on it. Due to mvnrepository.com not enabling access to their provided data without unofficial implementation-heavy and time-consuming web scraping as an alternative, the latter was settled with for initial implementation.
Following section 3.1, the foremost use in practice for deprec will be inside continuous integration pipelines. Device Insight utilizes GitLab pipelines30 for continuous integration, therefore, the initial integration of deprec is implemented foremost with this circumstance in mind.
When evaluating Statements and EOS Factors, Points as described in section 4.4.2 are distributed to categories. Before starting the implementation of deprec, such categories have to be defined to evaluate Statements and therefore EOS Factors, which in turn represent the classification result of a dependency (see Figure 4.3) and are returned as output of deprec (see Figure 4.4).
Due to deprec having its use case within dependency management, detecting end-of-support dependencies within a project serves as a prophylaxis to minimize risks and expenses due to problematic dependencies. Classifying dependencies strictly without margin as either end-of-support or not, would result in an overly strict view on dependency end-of-support status, which does not reflect the actual landscape of dependencies. Following that, choosing two categories such as ’in favor of EOS’ and ’not in favor of EOS’ does not benefit the use within dependency management. Instead, dividing categories which Points are distributed to more granular, the following four categories are proposed: No Concerns (NC), No Immediate Action (NIA), Watchlist (W) and Decision Making (DM).
In general, the former two represent the ’not in favor of EOS’ fraction, whereas the latter two represent the ’in favor of EOS’ fraction. What differentiates NC and NIA from W and DM is the consequence if action has to be taken regarding a given dependency. The difference between NC and NIA lies within whether action is likely to be necessary, but not within the current situation the dependency is at. Separating W and DM is that dependencies classified as the former present a higher risk of consequences of end-of-support dependencies and should be kept in check. Whereas, action to be taken is recommended for dependencies classified as the latter.
Implementing the extraction phase of deprec consisted of implementing Extractors for selected data origins. Concerning this section are insights about how APIs were consumed and why their responses were cached.
The GitHub API provides two different API endpoints to fetch data from, one being its REST API31 and the other its GraphQL API32.
The Extractor implemented was foremost focused on extracting data from the GitHub REST API. The reasoning was that fetching data via the REST API was more convenient and quicker to implement to achieve fast prototyping and iterative development. Data from the REST API endpoint included commits, issues, releases, and tags for a repository as well as general information about the repository and its contributors. Accessing the GitHub REST API using the Go programming language was achieved by using its existing client for it33.
Though, implementing the Extractor to additionally consume the GraphQL API endpoint was done so on a test basis and for a single and limited purpose. One particular endpoint was more profitable consumed via the GraphQL endpoint than via the REST API. In detail, fetching additional information about a repositories contributors: fetched via the REST API would require \(n\) API requests, fetched via GraphQL, only one API request is required. Similar to the GitHub REST API, its existing client34 for the Go programming language was utilized to access the GitHub GraphQL API.
Implementing an Extractor consuming the Sonatype OSS Index REST API was done via utilizing an existing client35 for the API.
Data fetched was foremost about numbers of vulnerabilities of a dependency. The API provides further and more detailed information about given vulnerabilities, though was not utilized. Deprec providing further insights into given vulnerabilities if a dependency had any was not considered.
Consuming the Maven Central Search REST API implemented within its Extractor posed the difficulty that no existing client existed yet. Therefore, consuming the API was done so with a lightweight basic client written for this Extractor. It enables to fetch data about dependencies identified via SHA-1 hashes across their versions, as well as artifacts specific to a dependencies’ version.
Consuming the GitHub REST API subdues a rate limit of 5000 requests per hour36, which had to be handled within the according Extractor. Initially, to counteract the rate limit and to achieve proper development capabilities without having to consume the same API endpoints repeatedly, caching was implemented into consuming APIs from the get go. During development, caching API responses enabled faster repeatability of testing deprec and fostered faster iterations while developing the same.
In addition, implementing caching into the consumption of APIs avoids redundancy of the same data being fetched from the same endpoint on two different occasions. Especially critical for deprec and its performance, for example, are dependencies that are developed within the same repository. Dependencies developed in such a repository, also referred to as monorepo, would have the same external reference listed as their repository in an SBOM. Without caching, the Extractor would extract the same data from the same repository over and over.
The cache was implemented as a layer wrapping API clients consuming their according APIs. To store cached data, a MongoDB37 was chosen, and the following schema applied: each API endpoint had its database, which within documents, i.e., JSON objects, were stored that represented a specific request to the given API endpoint. For example, consuming the GitHub REST API to list contributors of the ’reactjs’ repository resulted in a document named ’reactjs’ listing contributors, being added into the ’repository_list_contributors’ database.
To keep the database upkeep simple, API responses were stored into their database as is, without modification. MongoDB and its Go Driver38 enabled the caching of unaltered API responses conveniently and natively without interference, which was the main reason why MongoDB was chosen.
Statements and EOS Factors both rely on the concept of distributing points proposed in section 4.4.2. The key difference being that Statements distribute points by evaluating Signals and Metrics, whereas EOS Factors take over Points distributed by Statements. Therefore, both can be implemented by the same data structure for ease of use: Cores. A Core is a data structure which facilitates the distribution of Points to categories by either interpreting Signals or Metrics, or taking over distributed Points from other Cores.
type Core struct {
Name string
NoConcerns float
NoImmediateAction float
Watchlist float
DecisionMaking float
}
func (c *Core) Intake(value, weight){...}
func (c *Core) Overtake(core, weight){...} Listing 5.1 depicts the simplified Golang struct alongside its two intake and overtake methods. Differentiated by its Name, a Core has four categories according to section 5.1 which Points can be distributed to. Categories and Points distributed to them are represented as float, with each Point being added, incrementing the float value.
Core function intake takes in a float as value and distributes Points depending on the value taken in. Following that, values from \(0\) to \(1\) taken in are interpreted in intervals of \(0.25\) starting with Points being distributed to Decision Making for values strictly less than \(0.25\) and so on. The weight parameter taken in additionally controls the number of Points which are distributed to the according category. On one hand, Signals, due to their ’yes’ or ’no’ philosophy, depending on which category they distribute Points to, can be represented as either \(0.25\), \(0.5\), \(0.75\) or \(1\). Metrics, on the other hand, due to being continuous, when being evaluated, have to be normalized between \(0\) and \(1\) beforehand.
Core function overtake, takes in another Core and takes over its distributed Points, which can be additionally weighted by the weight parameter.
When taking over Points from other Cores, it was necessary to normalize distributed Points before taking them over. Reasoning was that Points distributed by intake for the same Core can be weighted and set in relation with each other within the context of that Core. Taking over Points from a Core has to be done without also carrying over internal weights from that Core. In addition, normalizing Cores before takeover, enables to take over multiple Cores set in relation to each other by weights, without weights of underlying Cores to interfere.
On the base of information in section 2.3.1 and definitions of Statements and EOS Factors, following the concept of the same described in section 4.4, Statements and EOS Factors are implemented. To be noted, only few Statements and EOS Factors are looked upon in detail, which were chosen in such a way as to represent the widest possible range of implemented evaluation functionality.
This chapter provides detailed insights into how extracted data is turned into Signals and Metrics, and how the same are evaluated and combined to distribute Points to categories to evaluate Statements. Furthermore, detailing how Statements are combined into EOS Factors.
Within the scope of this work, not all EOS Factors were implemented to their fullest capabilities. Figure 5.1 depicts the current state of implementation as of this work. Some Statements were less feasible than others, with higher cost of implementation associated. Their implementation would involve a disproportionately high effort to achieve their fullest.
Marking, for example, was implemented as basic key-word comparison. It would be possible to be implemented in a much more complex way, for example, to cover the broadest of details whether a repositories README contains information about the dependencies’ status. Given the repository ’RxJava’39, its README contains end-of-life notices for versions \(1.x\) and \(2.x\). To associate the end-of-life notice with only versions \(2.x\) and \(1.x\) without doing so for versions \(3.x\) requires techniques that go beyond key-word comparison.
Downstream and Upstream would each require analysis of additional dependencies for each focal dependency. Impact requires analyzing each commit to compute its impact. Implementing the three Statements, though possible, would add complexity not worth the effort for initial implementation, which is why they were not considered.
LTS would require profound analysis to match commits for
security or vulnerability patches and whether these commits were checked
into previous releases. Though it would amount to verify if releases
have been re-released, analyzing descriptions and content of releases
whether they specify or reveal that vulnerabilities have been back
ported. LTS was among other Statements the most
difficult to find a proper approach for implementation, which is why
LTS was not considered for initial implementation.
The advantage of the EOS Abstraction Framework though is that
there is no mandatory dependence on individual Statements to
perform the classification. Be it all Statements or a single
one, the classification would function anyway, though with more room for
inaccuracy, the fewer Statements that could be used.
While implementing Statements and EOS Factors, the implementation was continuously evaluated and parameter-tuned based on a dependency collection40 representing the evaluation set mentioned in requirement Out Of Scope. Dependencies were collected throughout the time span of this work and subjectively assessed and classified as one of the four categories described in section 5.1.
Implementing Activity evaluates whether repository activity contraindicates end-of-support. Using commits, releases, and issues, they were subjected to a statistical analysis. To be noted, further explanations are given using commits, but the former are also applied to releases and issues, wich are evaluated the same. Though, commits and releases are weighted heavier than issues.
The difficulty of evaluating if recent commit activity being
sufficient is that commit activity cannot be compared against an
arbitrary value. Such an arbitrary value, how much activity would be
sufficient, would vary from project to project, as well as change
dynamically from time to time depending on a project’s current stage.
Instead, recent commit activity is compared against its timeline, i.e.,
past commit activity. Meaning by that, for example, commit activity in
the past two months is compared against commit activity of the last six
months up to the past two months.

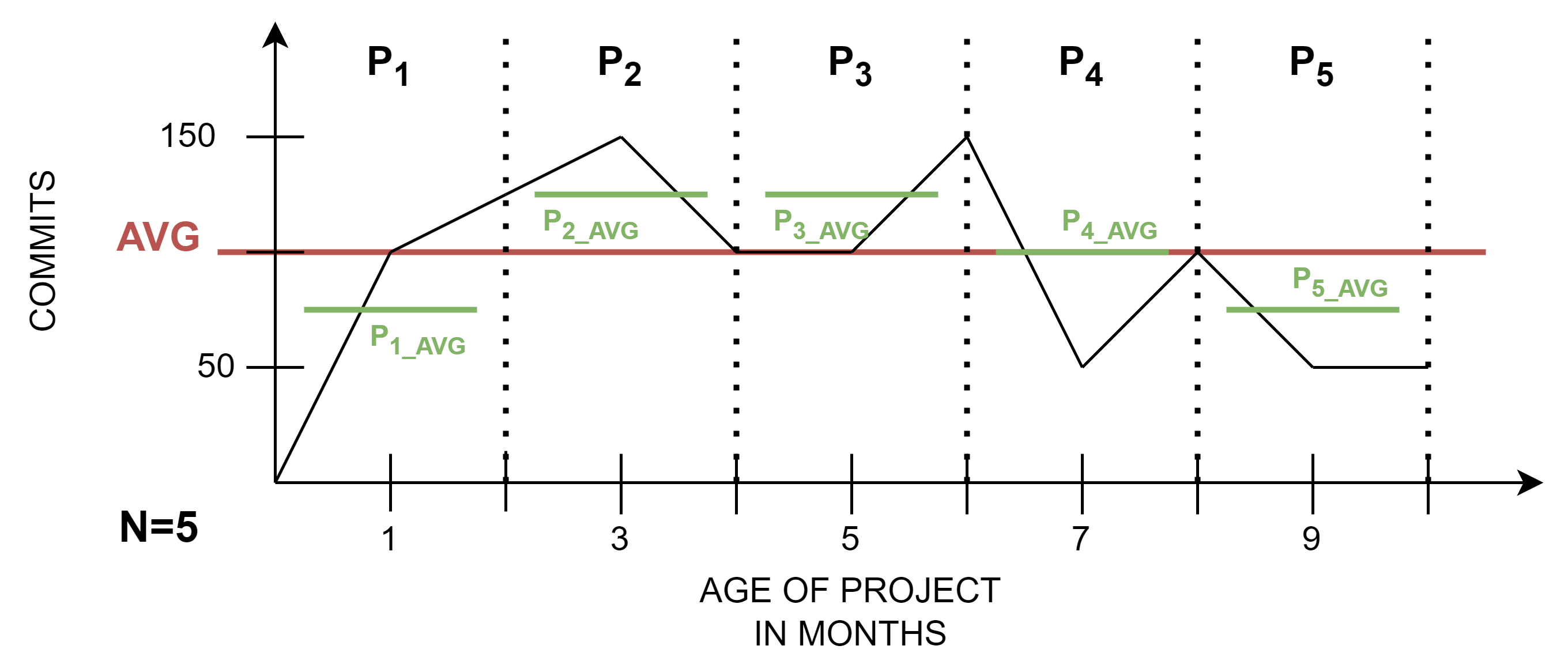

In preparation, three distinct targets are computed, visualized in Figure 5.2: I Having the
history of commits and their timestamps, they were grouped by month and
a monthly average \(AVG\) was computed;
II following that, the monthly commit timeline is split
into \(n\) sections of equal size,
i.e., percentiles \(P_n\);
III further, grouping all monthly commits for each
percentile \(P_n\), an average \(P_{n,AVG}\) for each percentile \(P_n\) was computed.
Using I, II and III, the first Metric for Activity was computed with Equation 5.1. Arguing that activity is at its highest around a projects’ growth stage (J. Wang 2012, 356), comparing recent commit activity against a repositories’ commit activity at growth stage places the former in relation. Dividing the commit timeline into five sections, i.e., 20 percentiles, the growth stage most likely lies within the first half of the timeline. Therefore, 5.1 evaluates the last 20 percent of commits in relation to the second 20 percent of commits.
\[\label{LPA-Over-SPA} recent\ activity\ to\ growth = \frac{P_{5,AVG}}{P_{2,AVG}}\] (5.2)
Elaborating further, the second Metric for Activity was computed with Equation 5.2. Again, the commit timeline is divided into percentiles of 20. Contrary to Equation 5.1, Equation 5.2 compares recent commit activity against the repositories average commit activity over all its timeline.
\[\label{LPA-Over-AVG} recent\ activity\ to\ average = \frac{P_{5,AVG}}{AVG}\] (5.2)
Given whether a repository was updated recently, Recentness is evaluated by comparing latest commits and releases against limits. Limits, in this case, represent the maximum number of months accepted since the last activity, which were set as 24 months and four months respectively. Due to repositories receiving commits without necessarily having produced a release, the former is weighted heavier than the latter.
To evaluate recency of commits, the Metric of months passed since the repositories single latest commit is computed and set against its given limit. Given the commit timeline of the ’log4j1’ repository41 for example, the repository received outlier commits long after its end-of-life notice. Comparing the single latest commit isolated, would implicate recency and negatively influence the evaluation, leading it astray. Therefore, in addition, the average months past since committed of the latest two percent of commits collected is computed as Metric and also compared against the same limit. To be noted, the latter Metric is weighted heavier than the former.
Evaluating recency of releases, computing months passed since the repositories latest release as Metric and comparing it against its given limit is sufficient.
The core of Processing is efficiency of issue handling. To measure it, the target Metric of burn using Equation 5.3 was computed for each month of the repository issue timeline. Burn represents the efficiency with which a repository processes (closes) their issues. Low burn in a month indicates that a repository received more issues than it could process, with high burn indicating that a repository managed to keep their issue numbers at bay, able to close more issues than it received.
Though burn represents the efficiency with which a repository processes issues, it cannot be used to evaluate Processing yet, further computing is necessary. To evaluate Processing, the burn timeline was evaluated with the same principles depicted in Figure 5.2. The timeline is split into five sections, i.e., 20 percentiles. Similar to Activity, recent burn was evaluated in relation to the timelines total average burn and the burn of the repository at its growth stage.
In addition to utilizing burn, the average closing time of issues was computed and compared against the given limit of two months.
\[\label{burn} burn = \frac{closed\ issues}{opened\ issues}\](5.3)
Implementing Backup as to how much a dependency is backed up, the following Metrics are cumulated and compared against given thresholds: contributor companies, contributor organizations and contributor sponsors. In addition, the Signal of whether the repository is backed by an organization was used, which is weighted heavier than all other Metrics in the evaluation.
Evaluating Network amounts to cumulating outgoing connections of a dependency and its repository to measure how networked a dependency is. Achieved by cumulating different numerical aspects of a dependency and its repository: contributor repositories and organizations, and collaborators, repositories and followers within the organization of a repository. The accumulation was then compared to a given threshold.
The evaluation functionality of distinct EOS Factors boils down to trade-off of their according Statements. Considering Circumstances, it is intentionally designed to be the category of everything else. The trade-off of Statements within Circumstance is rather simple, weighting contextual different Statements is difficult doing it logical sound. Therefore, all Statements in Circumstance are evenly weighted. Other than Circumstance, all EOS Factors weight their Statements based on the results received on the evaluation set. Effort, for example, weights Recentness heavier than Activity and Core Team. Giving definitive answers, though, as to how to weight different Statements within EOS Factors is hard to achieve, but could be subject to further research.
Elaborating further, section 4.5 describes that EOS Factors among themselves are combined to composite the final distribution of Points representing the classification of a dependency as end-of-support. The evaluation functionality of this aspect is implemented the same as just described, trade-off of all seven EOS Factors. Effort and Support, following section 4.5.1.1, are weighted heaviest, followed by Community and Interconnectedness, with Ecosystem and Circumstances being weight the lightest. Whereas Deity-Given, serving a preliminary function, is weighted in such a way that it can determine the result independently of all others. Though, here again, giving definitive weights is hard to achieve, but could be subject to further research.
Limits, percentages, weights and thresholds mentioned throughout the explanation of evaluating Statements and EOS Factors hereinbefore were not chosen arbitrarily. The determination of these values is based on continuous evaluation with the aforementioned evaluation set. Limits, percentages, weights, and thresholds presented were the ones achieving the best results against the evaluation set by manual testing.
Nonetheless, for the use of deprec going forward, the implementation of evaluating Statements and EOS Factors is enabled to be configured using a separate configuration file. With which limits, percentages, weights, and thresholds used throughout the implementation can be configured to control and tune the evaluation.
The technical conception presented in chapter 4 and implementation described hereinbefore does not entail details of the practical usage of deprec and how it can be utilized from a user standpoint within pre-existing workflows and infrastructure. Done so with intention, the functionality of deprec, i.e., project-based dependency end-of-support detection, is split from its application. To achieve requirement Integrability, separating functionality from application enabled the former to be implemented to fit different premises.
To facilitate the split of functionality and application,
deprec defines an interface listed in Listing 5.2 as the
docking point for applications integrating deprec. Detailed in
a simplified way, it is modelled for ease of use through simplicity and,
on a side note, represents the implementation of Figure 4.4.
type Deprec struct {
config Configuration
}
func NewDeprec(config) *Deprec {...}
func (d *Deprec) Run(sbom) {
... // parse sbom
report := ...
for each dependency:
agent := ...
result := agent.Run(config)
report.Add(result)
return report
}Given in Listing 5.2 is deprec’s basic instance, entailing a configuration with which the instance is configured when created with the according NewDeprec method. The configuration available in Appendix B entails limits, thresholds, weights, and percentages referenced in section 5.4.5 as well as necessary information for Extractors to utilize their according APIs, such as API tokens and credentials. Further, exposed is the Run method. With it, a passed SBOM is parsed into dependencies with their according data given by the SBOM. Following that, Run creates an Agent for each dependency, passing it the aforementioned configuration. Each Agent is run, and its result collected into a report, which is then returned.
Stated in section 3.1, deprec is integrated into and initially tested within continuous integration pipelines. Following that, the software solution and its application has to be implemented accordingly to fit this use case. Coupled with the fact that Go allows the functionality to be compiled into a single executable, deprec was implemented as a command line interface (CLI) tool.
Due to the separation of functionality and application, to implement
deprec as command line interface, a different project was
utilized that imports the functionality of deprec. The
functionality is further referenced as deprec, whereas the CLI
tool is referenced hereinafter under the title
deprec-cli.
Usage: deprec-cli [options] <sbomJson>
Options:
-config string
Evaluation config file (default "config.json")
-env string
Environment variables file (default ".env")
-output string
Output file (default "deprec-output.csv")
-runMode string
Run mode - parallel or linear (default "parallel")
-workers int
Number of workers if in parallel mode (default 5) The core of deprec-cli is that it wraps deprec, it handles input, output, and configuration details via the command line such as decoding SBOM files, writing to an output file or handling the configuration for deprec. Listed in Listing 5.3 is its usage, detailing what deprec-cli takes in as command line argument alongside its options.
has its input defined as the path to a SBOM as .json file that is to be analyzed. Options of deprec-cli consist of:
representing the path to a configuration file that entails limits, percentages, weights, and thresholds used for evaluating Statements and EOS Factors. This option maps the configuration of deprec listed in Appendix B.3 and Appendix B.4.
representing the path to an environment variable file. It contains sensitive information such as tokens and passwords as environment variables that should not be included in a supplied configuration file, but rather passed alongside. Deprec expects those environment variables, be it through an .env file that deprec-cli then loads itself or pre-existing environment variables when deprec-cli is invoked. This option maps the configuration of deprec listed in Appendix B.1 and Appendix B.2.
representing the path to where the result of a finished SBOM analysis, i.e., dependencies and their classification distribution, should be written to.
representing the mode in which deprec creates and runs Agents. On one hand, linear meaning that one Agent after another other is created and run, resulting in linear processing of dependencies. On the other hand, parallel lets deprec create and run Agents concurrently.
representing the number of workers that, if run in parallel, can be run to analyze dependencies concurrently. Meaning, by that, the number of Agents that can be created and run concurrently.
Deprec implemented within this work subdues three consequential limitations by design decisions made in chapter 4 and section 5.1.
For one, deprec’s extraction phase, specifically the GitHub Extractor, is limited in its capabilities by the REST APIs internal rate limit of 5000 requests per hour. This has the effect of limiting the throughput with which dependencies can be classified. In an extreme case, projects with numerous dependencies, which in turn have a lot of data to be fetched, may bump up against the rate limit without deprec being able to classify all dependencies. Sonatype OSS Index and Maven Central, as far as concerned within this work and consumed by deprec, do not impose limitations on API requests that would substantially restrict deprec’s capabilities.
A partial solution to this situation would be to split data extracted between GitHub’s REST and GraphQL API. Partially, as GitHub’s GraphQL API also imposes rate limits42. To fully substitute the REST API with its GraphQL pendant is not possible, as rate limits on the latter are calculated to counteract the greater capabilities of GraphQL compared to REST and are not based on number of requests.
Mentioned in section 5.1 is that the Maven ecosystem offers two distinct data origins. Suitable for integration, though, was only one of the two. The hoped-for benefit of rich information that mvnrepository.com would provide could not be entirely derived from search.maven.org. For example, the former provides detailed key figures for the use of a dependency in other dependencies of the Maven ecosystem. The same could not be achieved for the latter. Similar situations were the case for information or key figures such as ranking among categories or domains, vulnerabilities, and dependents. Following that, Statements such as Popularity or Rivalry that would benefit from the just mentioned, could not be implemented to their fullest potential. While this situation is not advantageous, it is limited exclusively to the Maven ecosystem and would not affect other domains such as NPM if they were to be implemented.
Though CycloneDX SBOMs offering built-in standardization for deprec and provide valuable information about a dependency, external references of CycloneDX SBOM components in particular can be missing or are simply not available. Following that, if a dependency listed in the SBOM does not provide information that can be directly utilized in deprec’s extraction phase within the implemented Extractor, no classification is possible. To extrapolate data origins from related information, such as combing through GitHub repositories to associate a repository with the dependency at hand, was not considered. Though possible, it was deemed as not feasible for within this work nor its scope.
The technical concept proposed in chapter 4 was designed following its requirements in chapter 3. Implemented following the same and alongside section 5.1, deprec respectively deprec-cli is to be evaluated in practice in terms of usability. Focused on in this chapter is the walkthrough of integrating deprec-cli into continuous integration pipelines, discussing deprec’s performance and evaluating its results of classifying dependencies.
To evaluate usability, deprec respectively deprec-cli, in unison with section 5.1, was integrated into GitLab’s continuous integration pipelines. An example project was taken and a pipeline configuration implemented. Listed in Appendix C are the two pipeline jobs implemented to integrate deprec-cli.
Due to deprec-cli taking an SBOM as input, it is important that wherever deprec-cli is integrated into, an SBOM can be generated to be passed into deprec-cli. The project taken for this integration was a productive clients’ project developing an application in the Maven ecosystem. CycloneDX provides a Maven plugin43 to generate SBOMs for projects built within Maven. As listed, the preceding job in Appendix C generates a SBOM for the project with the Maven plugin and saves it to be handed over.
Following that, deprec-cli can be fetched via its released artifact from its official repository44. The configuration file for the evaluation of deprec’s Statements and EOS Factors was checked into the repository prior and can be used inside GitLabs continuous integration pipelines to be passed to deprec-cli. In addition, necessary environment variables have to be defined. Instead of passing them through a separate .env file that would have to be checked into the repository as the configuration file was, they were passed by internal GitLab CI/CD variables45. Given the configuration setup, deprec-cli can be executed, and its result exported as an artifact for further inspection.
To be noted, a cache was not utilized. Introducing a cache could
benefit performance in between instances of running ’analyze-sbom’,
though was not feasible with the GitLab runners at hand to have them
share a cache across runners and individual runs.
To summarize, integrating deprec respective deprec-cli
within the premise of continuous integration was achieved without
noteworthy hurdles to overcome. The resulting output of
deprec-cli, though, has to be inspected manually.
Evaluating deprec in terms of its of performance boils down
to measuring the throughput of dependencies by deprec. states
results over performance, though measuring performance to verify that
the implementation at least does not subdue unnecessary performance
losses, was carried out nevertheless. In advance, though rate-limiting
of APIs poses the biggest threat to performance and capability
whatsoever, it is not focused hereinafter and was intentionally
excluded.
Analyzing deprec with different SBOM run-throughs and Go’s
runtime profiling package ’pprof’46, the runtime of
Agents representing the time for a dependency to be processed
was measured. In terms of data, deprec revealed average
dependency throughputs based on if run with or without cache listed in Table
6.1. Though, only 50
dependencies were run for each SBOM due to rate-limiting reasons.
Furthermore, SBOMs of projects not developed within the Maven ecosystems
were used also as Extractors for GitHub and OSS Index were
still viable for extracting data from non-Maven SBOMs.
Resulting that the extraction phase took up most of the runtime of an Agent by far, two key-takeaways can be distilled: (a) the performance of deprec is profoundly influenced by both the quantity and magnitude of the dependencies evaluated; (b) the use of a cache has short-term negative impact of performance, i.e., frequent database operations, that are traded in for long-term benefits of using a cache, i.e., avoiding redundancy and expense.
Considering (b), caching can already be beneficial within the same run of processing SBOMs containing dependencies that are developed within a monorepo or share common ground, such as the repositories’ organization. Dependencies processed from the same developing organization can be cashed in terms of data such as contributors after the first fetch for every subsequent fetch. This could explain the discrepancy prevalent between no-cache and cache when processing Keycloak’s SBOM, since an increased number of dependencies processed when running Keycloak’s SBOM shared common ground.
| project | ecosystem | no-cache | cache, first time | cache, subsequent |
| Dropwizard | Maven | 7.37 | 7.03 | 99.8 |
| Keycloak | Maven | 6.27 | 7.29 | 131.07 |
| Dependency Track | Maven | 24.18 | 22.23 | 101.26 |
| Proton Bridge | Go | 8.65 | 7,86 | 311,77 |
Summarizing deprec’s measured performance regarding section 3.1, its performance was deemed as acceptable. Considering that API rate-limiting is the far greater threat to performance and capability, deprec’s performance measured in exclusion of rate-limiting is of no concern.
Focused on in this section is the evaluation of deprec’s accuracy in classifying dependencies collected for the evaluation set47. Before evaluating classifications, though, the evaluation set itself is to be discussed.
The evaluation set, detrimental to interpreting evaluation results of deprec’s classifications, though reviewed by colleagues internally, subdues to non-negligable bias which influenced the implementation to some degree. Due to that dependencies collected were subjectively assessed and thus classified, the evaluation set contains, on the one hand, subjectivity and, on the other hand, sampling bias. Utilizing the evaluation set to tweak evaluation of Statements and EOS Factors and therefore the classification of dependencies may lead to non-representation of dependencies neither considered for nor contained in the evaluation set.
In consequence, this circumstance must be considered when interpreting evaluation results about the accuracy of classifications and therefore the accuracy of deprec itself.
Requirement Out Of Scope states that though accuracy and success of deprec’s classification results of dependencies take on a secondary role, the former has to be discussed to rule out misleading directions.
Following that, to evaluate deprec’s classification accuracy, the following evaluation method is proposed:
given a dependency \(d\) in the evaluation set, it is pre-classified as one of the four categories described in section 5.1 labeled as \(C_{expected,d}\).
dependency \(d\) is then classified by deprec, with the normalized result labeled as \(normalized_d\).
\(normalized_d\) contains the probabilities for all four categories, with which the probability corresponding to \(C_{expected,d}\) and labeled as \(P_{C_{expected,d}}\) is extracted.
finally, \(error_d = 1 - P_{C_{expected,d}}\) is computed, representing the difference between the actual probability of the expected category and the max possible probability possible for a category.
With the above preparation applied for all \(n\) dependencies in the evaluation set, the
Mean Absolute Error (MAE) specified in Equation 6.1 is
computed.
\[\label{mse}
MAE = \frac{1}{n} \sum_{i = 1}^{n} (error_{d_i})\](6.1)
Though, since the MAE is not meaningful on its own, the percentages of
how many dependencies have been correctly classified specified
in Equation 6.3 and confident correctly
classified specified in Equation 6.4 are also
considered. A dependency \(d\) is
defined as correctly classified if \(P_{C_{expected,d}}\) is the highest
probability among the four probabilities contained in \(normalized_d\). Following that, all
dependencies \(d\) correctly
classified are defined as confident correctly classified if
their respective probability \(P_{C_{expected,d}}\) is above a predefined
confidence value. The confidence value is defined as specified in Equation 6.2.
\[\label{confidence} confidence = 0.75\](6.2)
\[\label{ratio} N_{correct} = \frac{correctly\ classified\ dependencies}{total\ dependencies}\](6.3)
\[\label{ratio-confident}
N_{correct,confident} = \frac{confident\ correctly\ classified\
dependencies}{total\ dependencies}\](6.4)
Given \(MAE\), \(N_{correct}\) and \(N_{correct,confident}\), deprec
can be evaluated in terms of the accuracy of its classification. The
former complements the insights of the latter two, as a high \(MAE\) with a high percentage of
correctly classified dependencies would conclude that although
most dependencies were correct classified, deprec was less
confident in doing so. Contrary to that, a low \(MAE\) with a high percentage of
correctly classified dependencies would represent the best
possible outcome: most dependencies were classified correct and
deprec did so confidently. Following that, it is to be expected
that the \(MAE\) should correlate with
\(N_{correct}\) and especially \(N_{correct,confident}\).
Elaborating further, based on the described evaluation method and applied to the evaluation set, the accuracy depicted in Figure 6.1 for deprec’s classification results was evaluated using two configurations concerning weights utilized for the evaluation of Statements, EOS Factors and the combination of the latter (hereinafter referenced as Combined). Evenly Weighted, on the one hand, represents the evaluation configuration in which all, Signals or Metrics within Statements, Statements within EOS Factors and EOS Factors within Combined were weighted equally. Suggestion, on the other hand, represents the suggested weighting that was discovered by trial and error for best results48.
Analyzing Figure 6.1, the following interpretations can be concluded: I with Out Of Scope and section 6.3.1 in mind, the accuracy in terms of correctly classified dependencies evaluated for the suggested configuration is acceptable; II Evenly Weighted though functioning as a comparison for Suggestion, because of its disastrous confidence and its percentage of correct classified dependencies being slightly better than a coin flip, is of no use for further work. This circumstance was to be expected, as some Statements and EOS Factors are clearly more decisive than others. A blanket equal weighting is deemed as not beneficial and therefore to be excluded. III given the non-negligable improvement in both the MAE and classification percentages, when introducing the suggested weighting, the importance of weighting is clarified. A net gain of 30 percent and 25 percent for correct classified dependencies and the MAE, respectively, shows that the suggested configuration leads into right directions. Further, the classification seems to benefit immensely in its confidence by weighting, with which more profound research into weighting within Statements, EOS Factors, and Combined could be the subject of further work; IV based on Evenly Weighted alone though, it can be concluded that the theoretical concept proposed in chapter 2 to assess dependencies about their end-of-support status to classify them as the same leads into the right direction. Coupled with Suggestion, it is safe to say that, though the implementation not covering all Statements nor EOS Factors and to some degree neither implementing them to their fullest potential, the proposed approach to detecting end-of-support dependencies is deemed as successful.
Complementary to evaluating deprec’s accuracy on the level of Combined, the same evaluation on accuracy can be applied on EOS Factor and Statement level to produce more profound insights. Utilizing the same evaluation method as described prior, \(MAE\), \(N_{correct}\) and \(N_{correct,confident}\) were evaluated for each EOS Factor and Statement independently. Figure 6.2 depicts the evaluation on EOS Factor level.
Analyzing the same, the following insights can be generated:
I as set forth above when describing the evaluation
method, indeed a correlation between \(MAE\) and \(N_{correct,confident}\) can be observed.
Comparing \(MAE\) and \(N_{correct,confident}\), the two are
linearly proportional to each other. With decreasing \(MAE\) values, EOS Factors gain in
confidence; II it may be prevalent that each EOS
factor by itself is not accurate enough to classify dependencies
correctly, the combination of the EOS Factors though improves
the classification on the one hand in percentages of correct
classified dependencies and on the other hand in confidence of doing so.
It further proves that the approach to the problematic of end-of-support
dependencies and especially the theoretical concept proposed in chapter 2 leads into right
directions.
The insights that EOS Factors independently do not provide the accuracy needed apart from when in combination, can further be observed when analyzing Statements isolated. However, as this would lead to similar looking results and insights as before, this more profound evaluation will be excluded for brevity to be discussed in this work, but was nonetheless performed and can be found in Appendix D for completeness.
In conclusion, this work has successfully addressed the research
question of end-of-support within open-source dependencies regarding
their potential pitfalls, by conceptualizing and implementing the
software solution deprec, designed to detect end-of-support
dependencies. Deprec mitigates dependencies jeopardizing future
development due to loosing support. With the lack of tooling leveraging
informational use out of the end-of-support status of dependencies,
deprec raises awareness and indicates potentially faulty
dependencies, helping development teams and project management to reduce
risk and expense by enhancing management capabilities and enabling more
timely integration into their planning.
The development and implementation of a technical concept was preceded
by a theoretical concept. It was elaborated, to classify dependencies as
end-of-support with an abstracted and constant methodology in a
comprehensible and approachable way. EOS Factors, which are
grouped from abstracted Statements representing distinct
informational value, represent core characteristics of dependencies in
terms of end-of-support. Given the theoretical concept alongside defined
requirements, the software solution titled deprec was
conceptualized, implemented and integrated as the command line interface
tool deprec-cli: integrating the aforementioned theoretical
concept and evaluating Statements and EOS Factors with
data extracted from various data origins, dependencies are classified on
an agent-based framework and a project-based approach by leveraging
CycloneDX’s SBOMs.
Deprec in line with its requirements achieves satisfactory accuracy and performance in classifying dependencies as end-of-support. It is easily integrated into different premises, rendering the overall approach viable for use within practice, especially internally within Device Insight. In addition, deprec functions project and data independent and can be expanded to accustom different dependencies for differing project contexts and use cases. The evaluation of deprec’s accuracy further validates that the proposed approach of classifying dependencies as end-of-support by combination of distinct characteristic factors within the EOS Abstraction Framework leads into promising directions, whilst also generating insights into the importance of different weighting strategies and interconnections between Statements and EOS Factors with and among each other.
The evaluation of deprec paved the way for further and more profound research into how different weighting strategies affect deprec’s classification results. Further research might include exploring different weighting strategies on the level of Signals and Metrics within Statements, Statements within EOS Factors and EOS Factors among themselves when combining them to conclude the classification of a dependency, i.e., the end of support status of a dependency. Doing so might gain insights to distill distinct steps to be taken to improve the concept of deprec.
The implementation of the technical concept of deprec was focused on proving feasibility and practicability. Expanding deprec’s extraction phase, and therefore extending deprec to cover a broader spectrum of different dependencies, can improve deprec in terms of its capabilities. Starting points could detail adding Extractors for data origins of dependencies from different domains or ecosystems other than implemented. Further, the implementation of evaluating Statements can be extended to improve the same with more profound and sophisticated implementation.
Within this work, deprec was implemented as the command line interface tool deprec-cli. Not considered and contrary to deprec-cli is the concept of serving deprec as service. Implementing deprec into a service accepting requests to analyze dependencies would cover yet another premise and opportunity of integrating deprec into one’s workflow.
type Configuration struct {
type Extraction struct {
type GitHub struct {
APIToken string
}
type OSSIndex struct {
Username, Token string
}
}
...
}type Configuration struct {
...
type Cache struct {
type MongoDB struct {
URI, Username, Password string
}
}
...
}type Configuration struct {
...
type CoresConfig struct {
type Combined struct {
Weights struct{
DeityGiven float
Circumstances, Ecosystem float
Effort, Support float
}
}
type DeityGiven struct {
Weights struct{
Marking, Vulnerabilities float
}
}
type Circumstances struct {
Weights struct{
Rivalry, Licensing, ProjectQuality float
}
}
type Effort struct {
Weights struct{
Activity, Recentness, CoreTeam float
}
}
type Support struct {
Weights struct{
Processing, Engagement, LTS float
}
}
type Community struct {
Weights struct{
Backup, Participation, Prestige float
}
}
type Interconnectedness struct {
Weights struct{
Popularity, Network float
}
}
type Ecosystem float struct {
Weights struct{
Upstream, Downstream float
}
}
...
}
}type Configuration struct {
type CoresConfig struct {
...
type Marking struct {
ReadMeKeywords, AboutKeywords []string
ArtifactDescriptionKeywords []string
Weights struct{
ReadMe, Archivation, About float
Artifact float
}
}
type ProjectQuality struct {
Weights struct{
ReadMe, About float
AllowForking float
License float
}
}
type Vulnerabilities struct {
Weights struct {
CVE float
}
}
type Rivalry struct {
Weights struct {
IsLatest float
}
}
type Licensing struct {
Weights struct{
Repository, Artifact, Library float
}
}
type Prestige struct {
Weights struct {
Contributors float
}
}
type Activity struct {
Percentile float
Weights struct{
Commits, Releases float
Issues float
}
}
type Participation struct {
CommitLimit int
ThirdPartyCommitThreshold float
Weights struct{
ThirdPartyCommits float
}
}
type Network struct {
Threshold int
Weights struct{
RepositoryNetwork float
}
}
type Popularity struct {
Threshold int
Weights struct{
RepositoryPopularity float
}
}
type Recentness struct {
CommitLimit, ReleaseLimit int
TimeframePercentileCommits float
Weights struct{
MonthsSinceLastCommit float
AverageMonthsSinceLastCommits float
MonthsSinceLastRelease float
}
}
type Processing struct {
ClosingTimeLimit int
BurnPercentile float
Weights struct{
Burn, AverageClosingTime float
}
}
type Engagement struct {
IssueCommentsRatioThreshold int
Weights struct{
IssueCommentsRatio float
}
}
type Backup struct {
CompanyThreshold int
SponsorThreshold int
OrganizationThreshold int
Weights{
Companies, Sponsors float
Organizations float
RepositoryOrganization float
}
}
type CoreTeam struct {
ActiveContributorsPercentile float
ActiveContributorsThreshold float
CoreTeamStrenthThreshold float
Weights{
ActiveContributors float
CoreTeamStrength float
}
}
}
}image: maven:3-jdk-8
stages:
- sbom
- deprec
create-sbom:
stage: sbom
script:
- mvn verify -Pcyclonedx
artifacts:
paths:
- target/bom.json
analyze-sbom:
stage: deprec
needs:
- create-sbom
variables:
GITHUB_API_TOKEN: $DEPREC_GITHUB_API_TOKEN
OSSINDEX_USERNAME: $DEPREC_OSSINDEX_USERNAME
OSSINDEX_TOKEN: $DEPREC_OSSINDEX_TOKEN
before_script:
- wget -q https://github.com/a-grasso/deprec-cli/releases/latest/download/deprec-cli_Linux_x86_64
- chmod +x deprec-cli_Linux_x86_64
script:
- ./deprec-cli_Linux_x86_64 --config deprec.config.json --runMode parallel target/bom.json
artifacts:
paths:
- deprec-output.csv
https://www.synopsys.com/software-integrity/cybersecurity-research-center.html↩︎
https://www.synopsys.com/software-integrity/security-testing/software-composition-analysis.html↩︎
GitHub repositories have the possibility to be marked as ’archived’; NPM registry has ’npm-deprecate’ to mark versions of a package↩︎
https://news.apache.org/foundation/entry/apache_logging_services_project_announces↩︎
https://mvnrepository.com/ for example, provides this feature for ’Category’ and ’Overall’↩︎
https://github.com/spdx/spdx-examples/blob/master/example8/spdx/examplemaven-0.0.1.spdx.json↩︎
standard normalization cannot handle the case of all values being zero↩︎
deprec is developed open source and can be viewed under its official repository https://github.com/a-grasso/deprec↩︎
https://docs.github.com/en/rest/rate-limit?apiVersion=2022-11-28↩︎
the collection can be found under https://github.com/a-grasso/deprec/blob/main/agent.test.csv↩︎
https://github.com/apache/logging-log4j1/graphs/contributors↩︎
https://docs.github.com/en/graphql/overview/resource-limitations↩︎
the evaluation set can be found under https://github.com/a-grasso/deprec/blob/main/agent.test.csv↩︎
the suggested configuration file for evaluation can be found under https://github.com/a-grasso/deprec/blob/main/config-templates/template.config.json↩︎
